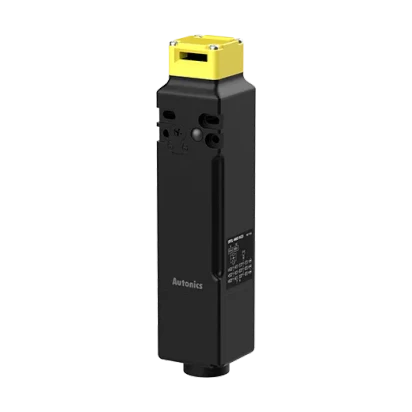

Autonics Safety Door Switches, model SFDL-S5B-G1/2, from the SFDL Series product line.
Specifications
- Directing opening force: Min. 80N
- Directing opening distance: Min. 10mm
- Locking pullout strength: Min. 1,300N
- Operating speed: 0.05 to 1m/s
- Operating frequency: Max. 20/min
- Life cycle_Mechanical: Min. 1,000,000 operations (20/min)
- Vibration_Malfunction: 0.35mm single amplitude at frequency of 10 to 55Hzin each X,Y,Z direction for 10 min
- Shock: 1,000m/s² (approx. 100G) in each X, Y, Z direction for 3 times
- Shock_Malfunction: 1,000m/s² (approx. 100G) in each X, Y, Z direction for 3 times
- Environment_Ambient temperature: -10 to 55℃, storage: -25 to 65℃
- Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
- Protection structure: IP67(IEC standerd, except head)
- Applicable cable: AWG22
- Material: Head: zinc, case: polyamide 66, operation key: stainless steel 304
- Sold separately: Operation key
- Weight: Approx. 440g(approx. 375g)
- Rated load voltage & current: Resistive load : 1A/120VAC~, 0.22A/125VDC@(=)</br>Inductive load : AC-15 1A/120VAC~, DC-13 0.22A/125VDC@(=)
- Dielectric strength_Between the terminals of same polarity: 1.5kV
- Dielectric strength_Between the terminals of different polarity: 1.5kV
- Dielectric strength_Between each terminal and non-live part: 2.5kV
- Insulation resistance: 100MΩ or more (500VDC megger basis)
- Contact resistance: Max. 200mΩ
- Life cycle_Electrical: Min. 100,000 operations (125VAC~/1A)
- Conditional short circuit current: 100A
- Rated voltage: 24VDC@(=)
- Current consumption: Supplying power: 0.26A</br>Normal: max. 0.2A (approx. 3 seconds after supplying power)
- Insulation class: Class E
