Autonics SPB Series SPB-030-05

List Price:

$57.00

/each

Product Description

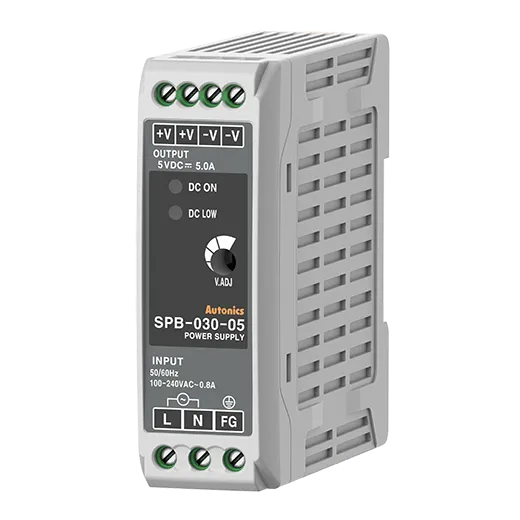

Autonics Smps, model SPB-030-05, from the SPB Series product line.

Output power: 25W
Input Voltage: 100-240VAC~ 50/60Hz
Permissible voltage: 85-264VAC~ 50/60Hz, 120-370VDC @(=)
Output_Voltage: 5VDC @(=)
Output_Current: 5A
Mounting type: DIN Rail
Protection: Over-Current/Inrush Current/Output Short-Circuit/Output Low-Voltage Indicate
Input_Frequency: 50/60Hz
Input_Efficiency_100VAC~: 0.77
Input_Efficiency_240VAC~: 0.78
Input_Power factor: -
Input_Current consumption_100VAC~: 0.56A
Input_Current consumption_240VAC~: 0.30A
Output type_Voltage adjustment range: Max. ±10%
Output type_Input fluctuation ratio: Max. ±0.5%
Output type_Load fluctuation ratio: Max. ±1%
Output type_Ripple&Ripple noise: Max. ±1.5%
Protection structure: IP20(IEC standard)
Environment_Ambient temperature: -10 to 50℃, storage: -25 to 65℃ (surrounding air temp.: Max. 40℃)
Environment_Ambient humidity: 25 to 85%RH, storage: 25 to 90%RH
Weight: Approx. 249g(approx. 176g)
