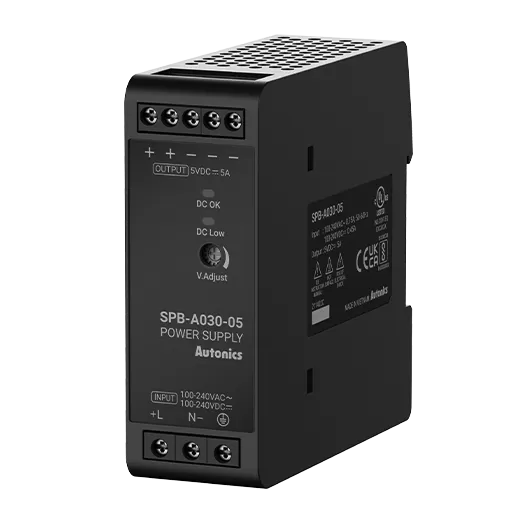

Autonics Smps, model SPB-A030-05, from the SPB-A Series product line.
Specifications
- Indicator: Output indicator (green), output low voltage indicator (red)
- Protection: Over-current protection, Over-voltage protection, Output short-circuit protection, Overheat protection
- Insulation resistance: Among all input terminals, all output terminals and PE : ≥ 100 MΩ (500 VDC@(=)megger)
- Dielectric strength: Among all input terminals and all output terminals: 3 kVAC~, Cutoff current = 20 mA</br>Among all input terminals and PE: 2 kVAC~, Cutoff current = 20 mA</br>Among all output terminals and PE: 1 kVAC~, Cutoff current = 20 mA
- Vibration: 0.75 mm amplitude at frequency 10 to 55 Hz in each X, Y, Z direction for 2 hours
- Shock: 150 m/s² (≈ 15 G) in each X, Y, Z direction for 3 times
- EMS: Conforms to EN61000-6-2
- EMI: Conforms to EN61000-6-4
- Environment_Ambient temperature: -20 to 70 ℃, storage: -25 to 80 ℃ (no freezing or condensation)
- Environment_Ambient humidity: 20 to 90 %RH, storage: 20 to 90 %RH (no freezing or condensation)
- Life expectancy: 10 years
- Protection structure: IP20(IEC standard)
- Input_Voltage: 100 - 240 VAC~/ 90 - 350 VDC@(=)(allowable voltage: 85 - 264 VAC~)
- Input_Current_115VAC~: 0.54A
- Input_Current_230VAC~: 0.33A
- Input_Frequency: 50/60Hz
- Input_Efficiency_115VAC~: 0.73
- Input_Efficiency_230VAC~: 0.71
- Input_Power factor_115VAC~: 0.5
- Input_Power factor_230VAC~: 0.44
- Output_Voltage: 5VDC @(=)
- Output_Current: 5A
- Output power: 25W
- Output type_Input fluctuation ratio: Max. ±0.5%
- Output type_Load fluctuation ratio: ≤ 3.0 %
- Output_Temperature variation: ≤ 0.05 % / ℃
- Unit weight (packaged weight): ≈ 170 g (≈ 265 g)
