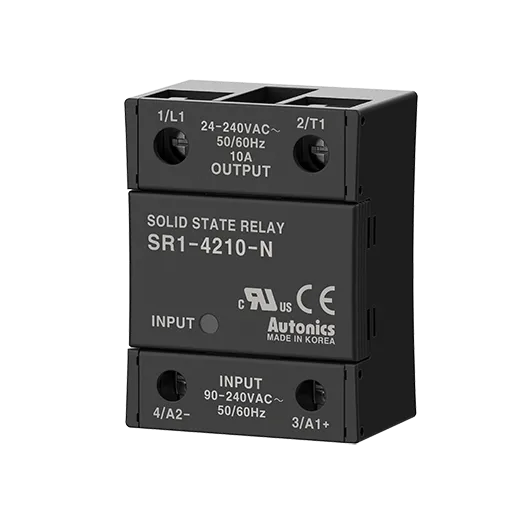

Autonics SR1 Series SR1-4210-N

List Price:

$18.00

/each

Product Description

Autonics Ssr, model SR1-4210-N, from the SR1 Series product line.

Control phase: Single-phase
Heatsink: -
Mounting type: Panel
Rated input voltage: 90-240VAC~
Rated load voltage: 24-240VAC~
Dielectric strength: 2500VAC~ 50/60Hz 1 min (Input-Output, Input/Output-Case)
Rated load current: 10A
Function: Zero cross turn-on
Environment_Ambient temperature: -20 to 70℃, storage: -30 to 100℃</br>(The rated load current capacity is different depending on ambient temperature. Refer to ‘▣ SSR Derating Curve’.)
Environment_Ambient humidity: 45 to 85% RH, storage: 45 to 85% RH
Weight: Approx. 111g(approx. 73g)
