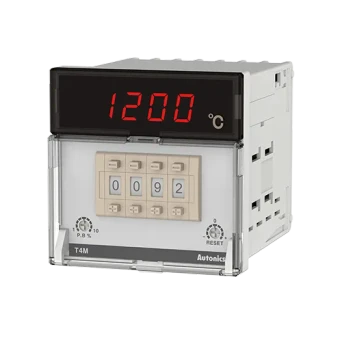

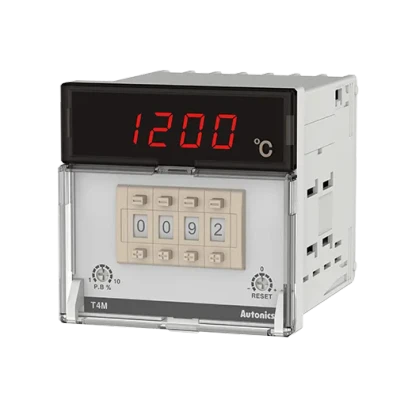

Autonics T3/T4 (Thumbwheel Switch) Series T4M-B4RP4C-N

List Price:

$166.00

/each

Product Description

Autonics Temperature Controllers, model T4M-B4RP4C-N, from the T3/T4 (Thumbwheel Switch) Series product line.

Display method: 4-digit 7-segment LED
Control method: ON/OFF control, P control
Input specification: RTD: DPt100Ω
Sampling cycle: 100ms
Setting range: 0 to 400℃
Control output: Relay(250VAC~ 5A)
Alarm/Sub/Dual output: -
Power supply: 100-240VAC~ 50/60Hz
Protection structure: -
Display accuracy_RTD: •At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit</br>•Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
Display accuracy_Thermocouple: -
Hysteresis(adjustable sensitivity): F.S. 0.2 to 3% variable
Proportional band: F.S. 1 to 10% variable
Proportional cycle: 20 sec
RESET range: F.S. -3 to 3% variable
Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 246g(approx. 180g)
