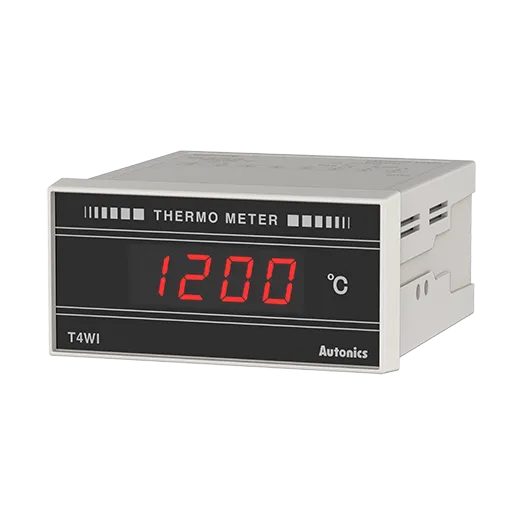

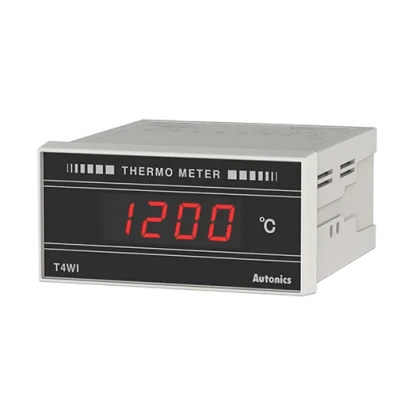

Autonics T3/T4 (Indicator) Series T4WI-N4NP0C-N

List Price:

$118.00

/each

Product Description

Autonics Temperature Controllers, model T4WI-N4NP0C-N, from the T3/T4 (Indicator) Series product line.

Display method: 4-digit 7-segment LED
Input specification: RTD: DPt100Ω
Sampling cycle: 100ms
Control output: Indicator
Display range: -99.9 to 99.9, -99 to 199℃, -99.9 to 199.9℃
Power supply: 100-240VAC~ 50/60Hz
Protection structure: -
Display accuracy_RTD: •At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit</br>•Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
Display accuracy_Thermocouple: -
Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 231g(approx. 140g)
