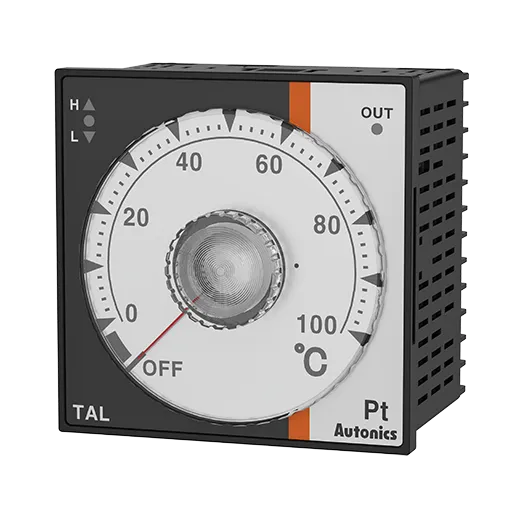

Autonics TA Series TAL-B4RP1C

List Price:

$77.00

/each

Product Description

Autonics Temperature Controllers, model TAL-B4RP1C, from the TA Series product line.

Size: DIN W96×H96mm
Display method: Non-display
Control method: ON/OFF control</br>PID control
Input specification: RTD: DPt100Ω
Temperature unit: ℃
Setting range: 0~100
Sampling cycle: 100ms
Control output: Relay(250VAC~ 3A)
Power supply: 100-240VAC~ 50/60Hz
Protection structure: -
Setting type: Dial setting
Setting accuracy: F.S. ±2%(room temperature 23℃±5℃)
Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Insulation type: Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 2kV)
Weight: Approx. 232g(approx. 147g)
