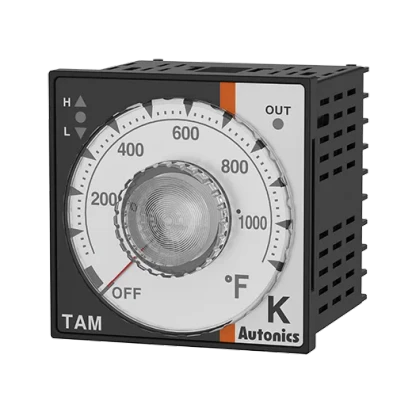

Autonics TA Series TAM-B4SK6F

List Price:

$72.00

/each

Product Description

Autonics Temperature Controllers, model TAM-B4SK6F, from the TA Series product line.

Size: DIN W72×H72mm
Display method: Non-display
Control method: ON/OFF control</br>PID control
Input specification: Thermocouple: K(CA)
Temperature unit: ℉
Setting range: 32~1,112
Sampling cycle: 100ms
Control output: SSR drive(12VDC @(=)) [ON/OFF]
Power supply: 100-240VAC~ 50/60Hz
Protection structure: -
Setting type: Dial setting
Setting accuracy: F.S. ±2%(room temperature 23℃±5℃)
Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Insulation type: Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 2kV)
Weight: Approx. 171g(approx. 109g)
