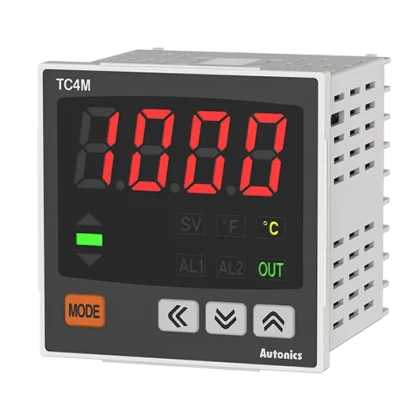

Autonics TC Series TC4M-N4R

List Price:

$105.00

/each

Product Description

Autonics Temperature Controllers, model TC4M-N4R, from the TC Series product line.

Size: DIN W72×H72mm
Display method: 4-digit 7-segment LED
Control method: ON/OFF, P, PI, PD, PID
Input specification: Thermocouple: K(CA), J(IC), L(IC)RTD: DPt100Ω, Cu50Ω
Sampling cycle: 100ms
Control output: Relay (250VAC~ 3A) or SSR drive (12VDC @(=)) [ON/OFF, phase, cycle]
Option output: -
Power supply: 100-240VAC~ 50/60Hz
Protection structure: -
Display accuracy_RTD: •At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit•Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
Display accuracy_Thermocouple: •At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit•Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
Hysteresis(adjustable sensitivity): 1 to 100℃/℉(0.1 to 50.0℃/℉) variable
Proportional band: 0.1 to 999.9℃/℉
Integral time: 0 to 9999 sec
Derivative time: 0 to 9999 sec
Control period: 0.5 to 120.0 sec
Manual reset: 0.0 to 100.0%
Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Insulation type: Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: AC power 2kV, AC/DC Power 1kV)
Weight: Approx. 204g(approx. 133g)
