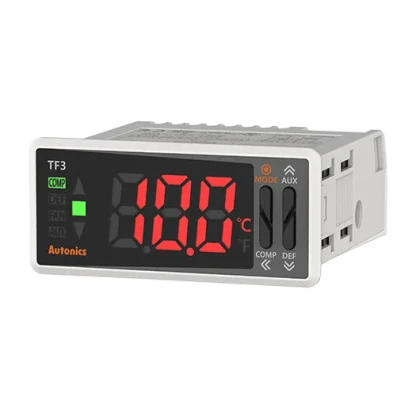

Autonics TF3 Series TF31-31A

List Price:

$118.00

/each

Product Description

Autonics Temperature Controllers, model TF31-31A, from the TF3 Series product line.

Display method: 7-segment LED
Control method: ON/OFF control
Number of input channels: 1CH [temperature+digital input(DI)]
Input specification: Thermistor(NTC):5kΩ, 10kΩ</br>RTD: DPt100Ω
Sampling cycle: 500ms
Load capacity_Compressor: 250VAC~ 5A 1a
Load capacity_Defrost: 250VAC~ 10A 1a
Load capacity_Auxiliary: 250VAC~ 5A 1a
Option function: No option
Power supply: 24VAC~ 50/60Hz, 12-24VDC @(=)
Protection structure: IP65(front panel)
Display accuracy: At room temp.(23℃±5℃): ±1℃±1 digit</br>Out of room temp. range: ±2℃±1 digit
Hysteresis(adjustable sensitivity): 0.5 to 5.0℃, 2 to 10℉ variable
Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Accessories: Bracket: 2, NTC sensor(5kΩ): 1
Weight: Approx. 207g(approx. 105g)

Write a Review

Brand:

Autonics Temperature Controllers, model TF31-31A, from the TF3 Series product line.

Display method: 7-segment LED
Control method: ON/OFF control
Number of input channels: 1CH [temperature+digital input(DI)]
Input specification: Thermistor(NTC):5kΩ, 10kΩ</br>RTD: DPt100Ω
Sampling cycle: 500ms
Load capacity_Compressor: 250VAC~ 5A 1a
Load capacity_Defrost: 250VAC~ 10A 1a
Load capacity_Auxiliary: 250VAC~ 5A 1a
Option function: No option
Power supply: 24VAC~ 50/60Hz, 12-24VDC @(=)
Protection structure: IP65(front panel)
Display accuracy: At room temp.(23℃±5℃): ±1℃±1 digit</br>Out of room temp. range: ±2℃±1 digit
Hysteresis(adjustable sensitivity): 0.5 to 5.0℃, 2 to 10℉ variable
Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Accessories: Bracket: 2, NTC sensor(5kΩ): 1
Weight: Approx. 207g(approx. 105g)
