Autonics THD Series THD-DD2-C

Autonics THD Series THD-DD2-C

Part Number #

AUT1051505

Autonics THD Series THD-DD2-C

List Price:

$339.00

/each

Product Description

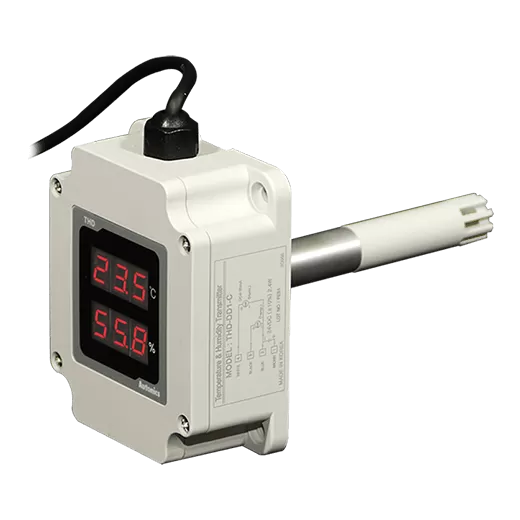

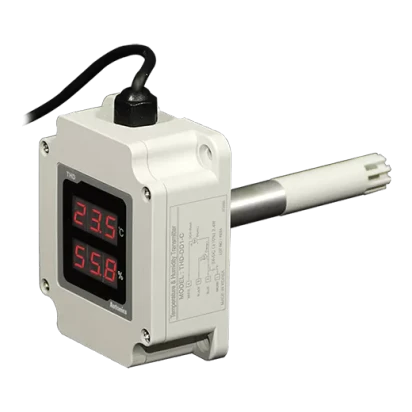

Autonics Temperature Sensors, model THD-DD2-C, from the THD Series product line.

Specifications

Display method: 3-digit 7-segment LED
Measured range_Temperature: -19.9~60.0℃
Measured range_Humidity: 0.0~99.9%RH
Output_Temperature: Current output(DC4-20mA)
Output_Humidity: Current output(DC4-20mA)
Sampling cycle: 500ms
Length of sensor pole: 200mm
Power supply: 24VDC @(=)
Protection structure: IP65(except sensor part)
Accuracy_Temperature: ±1.0℃(at room temperature)
Accuracy_Humidity: Typ. ±2%RH(10 to 90%RH, at room temp.)</br>※Max. ±2.5%RH
Resolution: 1/1000
Environment_Ambient temperature: -20 to 60℃, storage: -20 to 60℃
Weight: Approx. 415g(approx. 160g)
