Autonics THD Series THD-WD1-V
Part Number #
AUT1051515

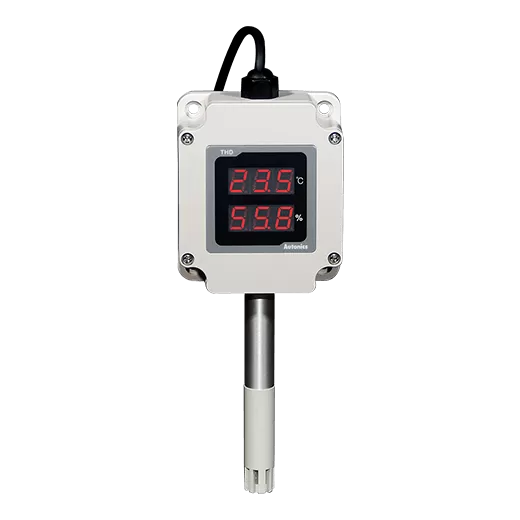

Autonics THD Series THD-WD1-V

List Price:
$339.00
/each
Product Description

Autonics Temperature Sensors, model THD-WD1-V, from the THD Series product line.

Specifications

  • Display method: 3-digit 7-segment LED
  • Measured range_Temperature: -19.9~60.0℃
  • Measured range_Humidity: 0.0~99.9%RH
  • Output_Temperature: Voltage(1-5VDC @(=))
  • Output_Humidity: Voltage(1-5VDC @(=))
  • Sampling cycle: 500ms
  • Length of sensor pole: 100mm
  • Power supply: 24VDC @(=)
  • Protection structure: IP65(except sensor part)
  • Accuracy_Temperature: ±1.0℃(at room temperature)
  • Accuracy_Humidity: Typ. ±2%RH(10 to 90%RH, at room temp.)</br>※Max. ±2.5%RH
  • Resolution: 1/1000
  • Environment_Ambient temperature: -20 to 60℃, storage: -20 to 60℃
  • Weight: Approx. 415g(approx. 160g)

Downloadable Materials

Write a Review

Out of stock

Request a Quote
  • CAD Model
  • Specifications
Brand:

Autonics Temperature Sensors, model THD-WD1-V, from the THD Series product line.

Specifications

  • Display method: 3-digit 7-segment LED
  • Measured range_Temperature: -19.9~60.0℃
  • Measured range_Humidity: 0.0~99.9%RH
  • Output_Temperature: Voltage(1-5VDC @(=))
  • Output_Humidity: Voltage(1-5VDC @(=))
  • Sampling cycle: 500ms
  • Length of sensor pole: 100mm
  • Power supply: 24VDC @(=)
  • Protection structure: IP65(except sensor part)
  • Accuracy_Temperature: ±1.0℃(at room temperature)
  • Accuracy_Humidity: Typ. ±2%RH(10 to 90%RH, at room temp.)</br>※Max. ±2.5%RH
  • Resolution: 1/1000
  • Environment_Ambient temperature: -20 to 60℃, storage: -20 to 60℃
  • Weight: Approx. 415g(approx. 160g)

Downloadable Materials
