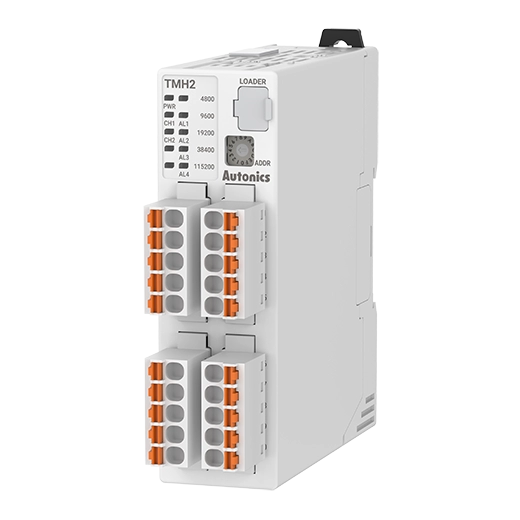

Autonics Temperature Controllers, model TMH2-22S-L, from the TMH Series product line.
Specifications
- No. of channel: 2-channel
- Sampling cycle: 50ms(2-CH or 4-CH synchronous sampling)
- Input type_TC: K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel II
- Input type_RTD: DPt100Ω, JPt100Ω, DPt50Ω, Cu100Ω, Cu50Ω, Nikel 120Ω 3-wire type(permissible line resistance max. 5Ω)
- Input type_Analog: Voltage: 0-100mVDC @(=), 0-5VDC @(=), 1-5VDC @(=), 0-10VDC @(=)</br>Current: 0-20mA, 4-20mA
- Input type_CT: 0.0-50.0A(primary current measurement range) ※CT ratio=1/1000, Measured accuracy: ±5% F.S. ±1-digit
- Input type_Digital inputs: Connect input: ON - max. 1kΩ, OFF - min. 100kΩ</br>Solid-state input: ON - max. residual voltage 0.9V, OFF - max. leakage current 0.5mA</br>Outflow current: approx. 0.3mA per input
- Control method: Heating, cooling, heating & cooling: ON/OFF, P, PI, PD, PID control
- Control output_SSR: Max. 12VDC @(=) ±3V 20mA
- Alarm output: 250VAC~ 3A 1a
- Communication: Modbus RTU
- Proportional band: Thermocouple / RTD: 0.1 to 999.9 ℃/℉, Analog: 0.1 to 999.9 %
- Integral time: 0 to 9999 sec
- Derivative time: 0 to 9999 sec
- Control period: 0.1 to 120.0 sec
- Manual reset: 0 to 100%( 0.0 to 100.0%)
- Insulation type: Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 1kV)
- Unit weight (packaged weight): ≈ 162 g (≈ 261 g)
- Power supply: 24VDC @(=)
- Allowable voltage range: 90 to 110% of rated voltage
- Power consumption: Max. 5W(for max. load)
- Display method: None-parameter setting and monitoring is available at external devices(PC, PLC, etc.)
- Memory Protection: ≈ 10 years (non-volatile semiconductor memory type)
- Insulation resistance: 100MΩ(at 500VDC megger)
- Dielectric strength: Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute
- Vibration: 0.75 mm amplitude at frequency of 5 to 55 Hzin each X, Y, Z direction for 2 hours
- Noise immunity: ±0.5kV the square wave noise (pulse width: 1㎲) by the noise simulator
- Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
- Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
- Protection structure: IP20(IEC standard)
