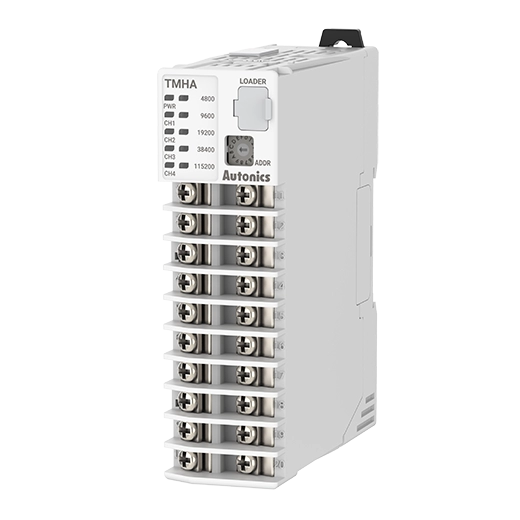

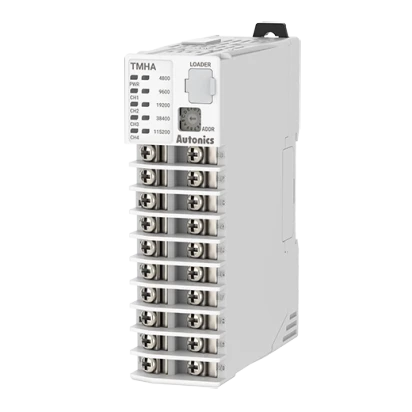

Autonics Temperature Controllers, model TMHA-42A, from the TMH Series product line.
Specifications
- No. of channel: 4-channel
- Sampling cycle: 50ms(4-CH synchronous sampling)
- Input type_TC: K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel II
- Input type_RTD: DPt100Ω, JPt100Ω, DPt50Ω, Cu100Ω, Cu50Ω, Nikel 120Ω 3-wire type(permissible line resistance max. 5Ω)
- Input type_Analog: Voltage: 0-100mVDC @(=), 0-5VDC @(=), 1-5VDC @(=), 0-10VDC @(=)</br>Current: 0-20mA, 4-20mA
- Output_Transmission: Selectable DC 4-20mA or DC 0-20mA(load resistance max. 500Ω)
- Communication: Modbus RTU
- Insulation type: Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 1kV)
- Unit weight (packaged weight): ≈ 160 g (≈ 235 g)
- Power supply: 24VDC @(=)
- Allowable voltage range: 90 to 110% of rated voltage
- Power consumption: Max. 5W(for max. load)
- Display method: None-parameter setting and monitoring is available at external devices(PC, PLC, etc.)
- Memory Protection: ≈ 10 years (non-volatile semiconductor memory type)
- Insulation resistance: 100MΩ(at 500VDC megger)
- Dielectric strength: Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute
- Vibration: 0.75 mm amplitude at frequency of 5 to 55 Hzin each X, Y, Z direction for 2 hours
- Noise immunity: ±0.5kV the square wave noise (pulse width: 1㎲) by the noise simulator
- Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
- Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
- Protection structure: IP20(IEC standard)
