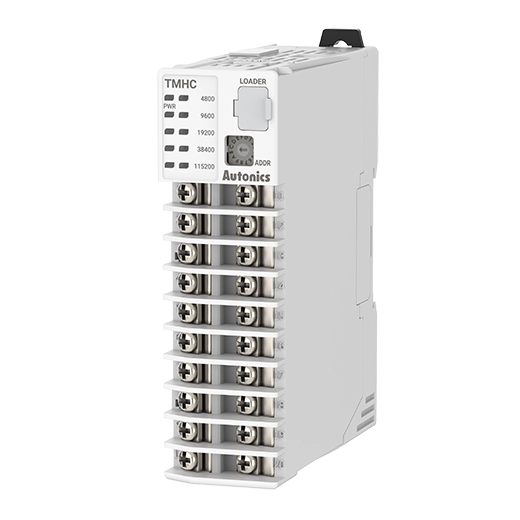

Autonics TMH Series TMHC-22L

List Price:

$535.00

/each

Product Description

Autonics Temperature Controllers, model TMHC-22L, from the TMH Series product line.

Comm._COM1(Master, PLC)_Connection method: RS422/RS485
Comm._COM1(Master, PLC)_Protocol: Modbus RTU, PLC ladderless comm.
Comm._COM2(Master, Group)_Connection method: RS422/RS485
Comm._COM2(Master, Group)_Protocol: Modbus RTU, PLC ladderless comm.
Insulation type: Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 1kV)
Unit weight (packaged weight): ≈ 147 g (≈ 222 g)
Power supply: 24VDC @(=)
Allowable voltage range: 90 to 110% of rated voltage
Power consumption: Max. 5W(for max. load)
Display method: None-parameter setting and monitoring is available at external devices(PC, PLC, etc.)
Memory Protection: ≈ 10 years (non-volatile semiconductor memory type)
Insulation resistance: 100MΩ(at 500VDC megger)
Dielectric strength: Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute
Vibration: 0.75 mm amplitude at frequency of 5 to 55 Hzin each X, Y, Z direction for 2 hours
Noise immunity: ±0.5kV the square wave noise (pulse width: 1㎲) by the noise simulator
Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Protection structure: IP20(IEC standard)
