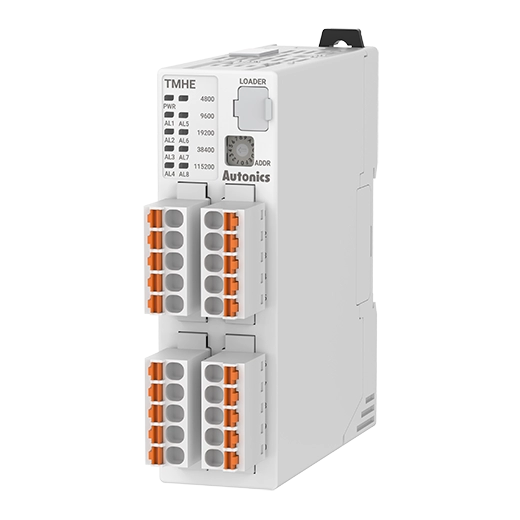

Autonics TMH Series TMHE-82R-L

List Price:

$321.00

/each

Product Description

Autonics Temperature Controllers, model TMHE-82R-L, from the TMH Series product line.

I/O points: 8-point
Input type_CT: -
Input type_Digital inputs: Connect input: ON - max. 1kΩ, OFF - min. 100kΩ</br>Solid-state input: ON - max. residual voltage 0.9V, OFF - max. leakage current 0.5mA</br>Outflow current: approx. 0.3mA per input
Alarm output: 250VAC~ 3A 1a
Communication: Modbus RTU
Insulation type: Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 1kV)
Unit weight (packaged weight): ≈ 151 g (≈ 250 g)
Power supply: 24VDC @(=)
Allowable voltage range: 90 to 110% of rated voltage
Power consumption: Max. 5W(for max. load)
Display method: None-parameter setting and monitoring is available at external devices(PC, PLC, etc.)
Memory Protection: ≈ 10 years (non-volatile semiconductor memory type)
Insulation resistance: 100MΩ(at 500VDC megger)
Dielectric strength: Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute
Vibration: 0.75 mm amplitude at frequency of 5 to 55 Hzin each X, Y, Z direction for 2 hours
Noise immunity: ±0.5kV the square wave noise (pulse width: 1㎲) by the noise simulator
Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Protection structure: IP20(IEC standard)
