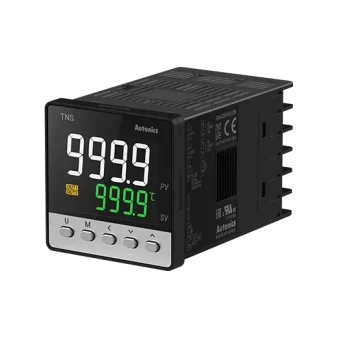

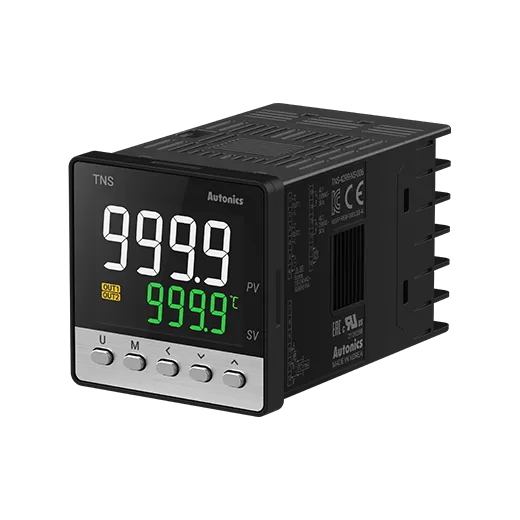

Autonics Temperature Controllers, model TNS-42RR-NS-008, from the TN Series product line.
Specifications
- Power supply: 100-240VAC~ 50/60Hz
- Power consumption: Max. 8VA
- Display method: 11 segment, LCD type (operating value display part: 7 segment)
- Sampling cycle: 50 / 100 / 250 ms (parameter)
- Option input_CT input: • 0.0-50.0 A (primary current measurement range)</br>• CT ratio: 1/1
- Option input_Digital inputs: • Contact - ON: ≤ 2 kΩ
- Control output_Relay: 250VAC~ 3A 1a
- Control output_SSR: -
- Control output_Current: -
- Option output_Alarm: 250VAC~ 3A 1a
- Option output_Trans.: -
- Option output_Comm.: -
- Control type_Type: ON/OFF, P, PI, PD, PID
- Control type_Multi SV: ≤ 4 SV
- Control type_Group PID: ≤ 8 group
- Control type_Zone PID: 4 zones
- Control type_ARW: 50 to 200 %
- Program control_Program: -
- Program control_Step: -
- Program control_Setting type: -
- Hysteresis: • Thermocouple, RTD: 1 to 100 (0.1 to 100.0) ℃/℉</br>• Analog: 1 to 100 digit
- Dielectric strength: Between primary terminal and case: 3,000 VAC~ 50/60 Hz for 1 min
- Vibration: 0.75 mm amplitude at frequency of 5 to 55 Hzin each X, Y, Z direction for 2 hours
- Relay life cycle_Mechanical: • OUT1/2: ≥ 5,000,000 operations</br>• AL1/2/3/4/5/6: ≥ 20,000,000 operations
- Relay life cycle_Electrical: • OUT1/2: ≥ 200,000 operations</br>• AL1/2/3/4/5/6: ≥ 100,000 operations
- Insulation resistance: ≥ 100 MΩ (500 VDC@(=) megger)
- Insulation type: Double insulation or reinforced insulation (mark: @(INS), dielectric strength between the measuring input part and the power part: 3 kV)
- Noise immunity: ±2 kV square shaped noise by noise simulator (pulse width: 1 ㎲) R-phase, S-phase
- Memory Protection: ≈ 10 years (non-volatile semiconductor memory type)
- Ambient temperature: -10 to 50 ℃, storage: -20 to 60 ℃ (no freezing or condensation)
- Ambient humidity: 35 to 85%RH
- Protection structure: IP65 (Front panel, IEC standards)
- Loader port: Top side
- Accessories: Bracket
- Weight: 128 g
