Autonics UTR Series UTRCM18-600

List Price:

$290.00

/each

Product Description

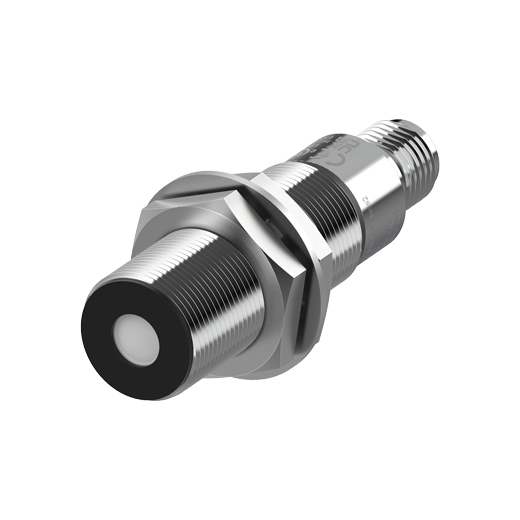

Autonics Ultrasonic Sensors, model UTRCM18-600, from the UTR Series product line.

Sensing distance: 65 to 600 mm
Blind zone: 0 to 59 mm
Foreground suppression: 65 to 195 mm
Max. setting zone: 600mm
Transducer frequency: 305 kHz
Switching frequency: ≥ 12.5 Hz
Response time: ≤ 64 ms
Hysteresis: 5mm
Standard sensing target: 200 × 200 mm
Resolution: ≥ 0.069 mm
Power supply: 12 - 30 VDC@(=) (ripple P-P: ≤ 10 %)
Current consumption: ≤ 40 mA (no load)
Digital output: Push-pull
Analog out: -
Protection circuit: Surge protection circuit, output short over current protection circuit, reverse polarity protection
Insulation resistance: ≥ 50 MΩ (500 VDC@(=) megger)
Dielectric strength: Between the charging part and the case: 1,000 VAC~ 50 / 60 Hz for 1 min
Vibration: 1.5 mm double amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours
Shock: 500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times
Ambient temperature: -25 to 70 ℃, storage: -40 to 85 ℃ (no freezing or condensation)
Protection structure: IP66, IP67 (IEC standard), IP69K (DIN standard), IP68
Connection: Connector models
Connector type: M12 5-pin plug connector
Material: Case: mount - SUS316L, body - PC, transducer: polyurethane foam, epoxy resin with glass
Unit weight (packaged weight): ≈ 30 g (≈ 85 g )
