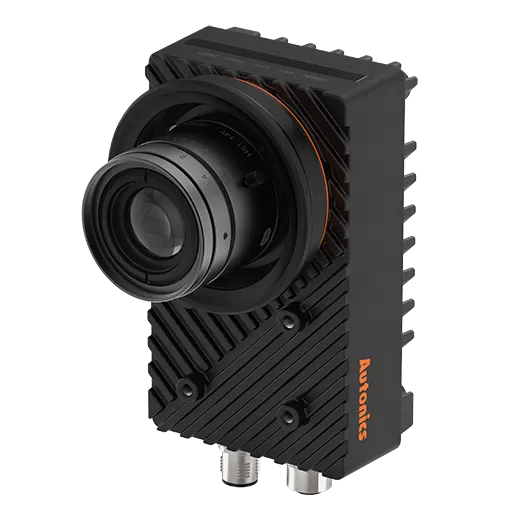

Autonics Smart Cameras, model VC-M50T-CE, from the VC Series product line.
Specifications
- Image element: 1 inch mono CMOS
- Resolution(Pixel): 5 MP (2,560×2,048)
- Frame per second: 16 fps
- Bit Depth: 8 bit (256 gray level)
- Shutter: Global shutter
- Exposure time: 3 μs to 3 sec
- Lens type: C-Mount
- eMMC: 8 GB
- DDR4: 2 GB(LPDDR4), 512 MB(DDR4)
- Inspection_Work group: 64 (simultaneous inspection: 32)
- Trigger mode: Continuous, External Trigger, Manual, Ethernet, RS232
- Communication: Ethernet (TCP/IP & Modbus) RS232C
- Output_FTP transmission: Possible
- Indicator: Power, LINK, DATA, USER 1, USER 2
- Unit weight (packaged weight): ≈ 600 g (≈ 780 g)
- Power supply: 24VDC @(=) ±10%
- Current consumption: 1A
- Input_Signal: Rated input 24VDC @(=) (±10%)
- Output_Signal: NPN-PNP open collector output setting (software)
- HS Out 0: Strobe OUT
- HS Out 1: Inspection complete, Inspection result output (PASS / FAIL), Alarm, Camera work
- Load voltage: 24VDC @(=)
- Load current: Max. 100mA
- Residual voltage: ≤2.5 VDC @(=)
- Protection circuit: Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit
- Vibration: 1.5mm amplitude at frequency of 10 to 55Hzin each X, Y, Z direction for 2 hours
- Shock: 300m/s² (approx. 30G) in each X, Y, Z direction for 3 times
- Environment_Ambient temperature: 0 to 45℃, storage: -30 to 80℃
- Environment_Ambient humidity: 0 to 95%RH, storage: 0 to 95%RH
- Protection structure: IP67 (IEC standard When mounting waterproof lens cover)
- Connection: Connector type
- Connector type: Power I/O: M12 8-pin, Ethernet: M12 8-pin / RJ45 (cable tightening torque: 0.4 N m)
- Material: Die-cast Aluminum Housing
- Product Components: Ethernet connector Cap (screw plug - waterproof) × 1 (tightening torque: 0.4 N m)
