Winters PFP880ZR PFP-ZR Pressure Gauge — 0/400 PSI/KPA, 2.5 in, Bottom

List Price:

$135.34

/each

Product Description

Winters PFP880ZR PFP-ZR pressure gauge.

Request a Quote — PFP880ZR

Stock, shipping and delivery are confirmed with your quotation. Include model and quantity.

Series	PFP-ZR
Pressure range	0/400 PSI/KPA
Dial size	2.5 in
Connection size	1/4 in NPT
Connection position	Bottom
Wetted parts	316L stainless steel
Case	AISI 304 stainless steel (dry)
Lens	Polycarbonate
Ring	AISI 304 stainless steel, bayonet
Socket	316L stainless steel
Bourdon tube	316L stainless steel
Movement	304 stainless steel; StabiliZR dampened movement with silicone in sealed chamber
Pointer	Aluminum, anodized black
Accuracy	+/-1.5% of full scale
Enclosure rating	NEMA 4X / IP66
Working pressure	Maximum 75% of full scale
Warranty	5 years
Damping	StabiliZR dampened movement; dry case
Ambient temperature	-76 to 200 F (-60 to 93 C)
Process temperature	-40 to 250 F (-40 to 120 C)
Welding	Laser welded socket to case

Winters manufacturer specifications and documentation

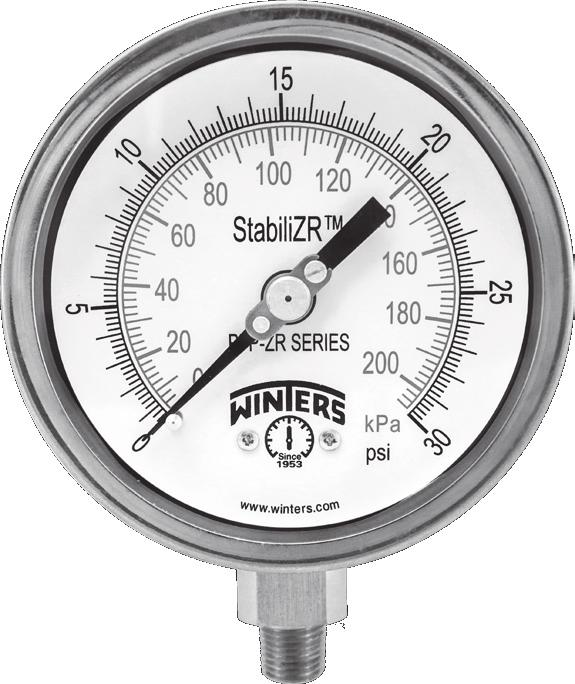

Manufacturer series image is representative. Ordered dial size, pressure range, wetted materials and connection are defined by the specifications above.
