Winters Pressure Gauges
Winters PFQ244ZR PFQ-ZR Pressure Gauge — 0/5,000 PSI/KPA, 4 in, Centre back

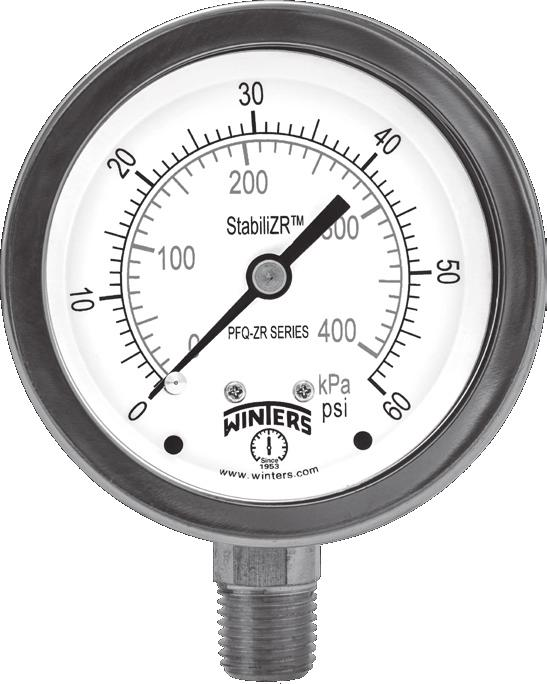

Representative Winters PFQ-ZR manufacturer catalog image; ordered configuration is defined by listed specifications

Part Number #

PFQ244ZR

Winters PFQ244ZR PFQ-ZR Pressure Gauge — 0/5,000 PSI/KPA, 4 in, Centre back

List Price:

$145.28

/each

Product Description

Winters PFQ244ZR PFQ-ZR pressure gauge.

Request a Quote — PFQ244ZR

Stock, shipping and delivery are confirmed with your quotation. Include model and quantity.

Series	PFQ-ZR
Pressure range	0/5,000 PSI/KPA
Dial size	4 in
Connection size	1/4 in NPT
Connection position	Centre back
Wetted parts	Brass
Case	AISI 304 stainless steel (dry)
Lens	Polycarbonate
Ring	AISI 304 stainless steel, crimp-on
Socket	Brass
Movement	Brass; StabiliZR dampened movement, silicone in sealed chamber
Pointer	Aluminum, anodized black
Accuracy	+/-1.5% of full scale
Enclosure rating	IP65
Working pressure	Maximum 75% of full scale
Warranty	5 years
Bourdon tube	Bronze
Damping	StabiliZR movement; dry case
Ambient temperature	-76 to 200 F (-60 to 93 C)
Process temperature	-40 to 200 F (-40 to 93 C)

Winters manufacturer specifications and documentation

Manufacturer series image is representative. Ordered dial size, pressure range, wetted materials and connection are defined by the specifications above.

WARNING: This product can expose you to chemicals including lead. See www.P65Warnings.ca.gov.
