Winters PFQ3661 PFQ Pressure Gauge — 0/1,500 PSI/BAR, 2.5 in, SAE bottom

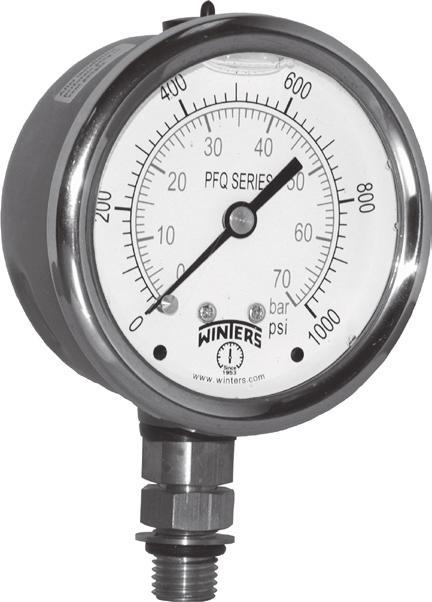

Representative Winters PFQ manufacturer catalog image; see ordered pressure range and SAE connection specifications

Part Number #

PFQ3661

Winters PFQ3661 PFQ Pressure Gauge — 0/1,500 PSI/BAR, 2.5 in, SAE bottom

List Price:

$71.38

/each

Product Description

Winters PFQ3661 PFQ stainless steel liquid filled pressure gauge with SAE connection.

Request a Quote — PFQ3661

Stock, shipping and delivery are confirmed with your quotation. Include model and quantity.

Series	PFQ stainless steel liquid filled pressure gauge
Pressure range	0/1,500 PSI/BAR
Dial size	2.5 in (63 mm)
Connection size	7/16-20 SAE
Connection position	Bottom (lower mount)
Case	AISI 304 stainless steel
Lens	Polycarbonate
Ring	AISI 304 stainless steel, crimp-on
Socket	Brass with restricted orifice
Movement	Brass
Bourdon tube	Phosphor bronze
Fill liquid	Glycerin
Pointer	Aluminum, anodized black
Accuracy	+/-1.5% of full scale
Enclosure rating	IP65
Ambient/process temperature (filled)	-4 to 150 F (-20 to 65 C)
Working pressure	Maximum 75% of full scale
Warranty	5 years

Winters manufacturer specifications and documentation

Representative manufacturer series image. The ordered pressure range and SAE connection are defined above; the image does not establish the supplied dial scale or thread configuration.

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. See www.P65Warnings.ca.gov.
