Winters PPC5067ZRR1 PPC-ZR Pressure Gauge — 0/300 PSI, 4.5 in, Bottom

List Price:

$250.37

/each

Product Description

Winters PPC5067ZRR1 PPC-ZR pressure gauge.

Request a Quote — PPC5067ZRR1

Stock, shipping and delivery are confirmed with your quotation. Include model and quantity.

Series	PPC-ZR
Pressure range	0/300 PSI
Dial size	4.5 in
Connection size	1/2 in NPT
Connection position	Bottom
Wetted parts	316L stainless steel
Warranty	5 years
Case	Black phenolic safety case, solid front, pressure relief back, integral back flange
Pressure relief back	Polypropylene
Lens	Polycarbonate
Ring	Phenolic
Socket	316L stainless steel
Bourdon tube	316L stainless steel, seamless
Movement	304 stainless steel, under/overload stops; StabiliZR silicone damped chamber
Pointer	Aluminum, anodized black, micrometer adjustable
Welding	TIG
Accuracy	+/-0.5% ANSI/ASME Grade 2A
Enclosure rating	IP65
Working pressure	Maximum 75% of full scale
Case fill	Dry case with StabiliZR dampened movement
Ambient temperature	-76 to 200 °F (-60 to 93 °C)
Process temperature	-40 to 250 °F (-40 to 120 °C)

Winters manufacturer specifications and documentation

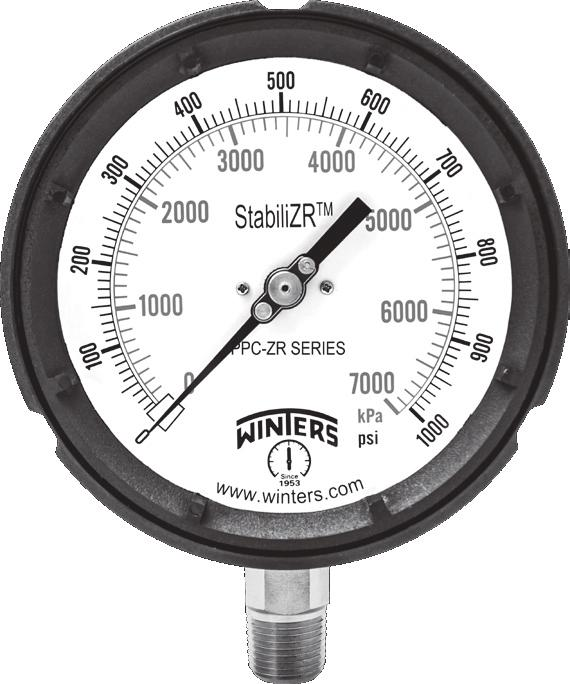

Manufacturer series image is representative. Ordered dial size, pressure range, wetted materials and connection are defined by the specifications above.
