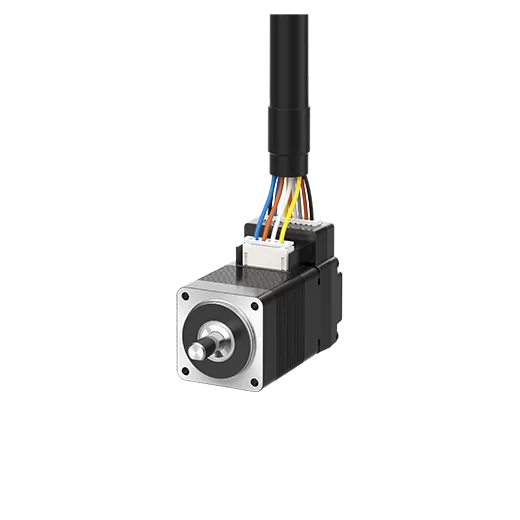

Autonics Ai-M Series Ai-M-20LA

Autonics Ai-M Series Ai-M-20LA

Part Number #

AUT1052744

Autonics Ai-M Series Ai-M-20LA

List Price:

$379.00

/each

Product Description

Autonics 2-phase Closed Loop Systems(inc), model Ai-M-20LA, from the Ai-M Series product line.

Specifications

Basic Step Angle [FULL/HALF]: 1.8º/0.9º
Max. holding torque: 0.357kgf.cm
Rotor Moment Of Inertia: 2g·cm²
Winding Resistance: 10.5Ω
Rated current: 0.6A/Phase
Motor length: 53.1mm
Shaft type: Single shaft
Operation method: Bipolar constant current Drive
Resolution: 4,000PPR(1,000PPR×4-multiply)
Output phase: A, @(A^), B, @(B^), Z, @(Z^)
Max. response frequency: 200kHz
Protection structure: IP30
Motor phase: 2-Phase
Number Of Axes: 1-axis
Environment_Ambient temperature: 0 to 50℃, storage: -20 to 70℃
Environment_Ambient humidity: 20 to 85%RH, storage: 15 to 90%RH
Weight: Approx. 0.219kg (approx. 0.120kg)
