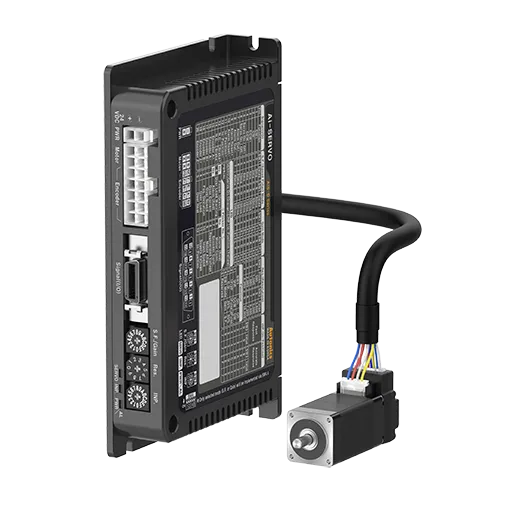

Autonics 2-phase Closed Loop Systems(inc), model AiS-20LA, from the AiS Series product line.
Specifications
- Driver_Operation Method: Bipolar constant current Drive

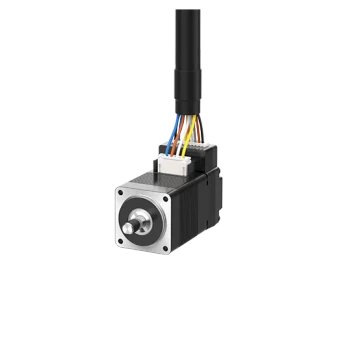

- Driver_Applied Motor: Frame size 20mm, shaft type, 2-phase closed-loop stepper motor(Ai-M-20LA)
- Driver_Resolution: 500, 1000, 1600, 2000, 3600, 4000, 5000, 6400, 7200, 10000 PPR(SW2)
- Driver_Power supply: 24VDC @(=)
- Driver_Max. Run Current: 0.6A/Phase
- Driver_Max. Power consumption: 50W
- Driver_Output: In-Position, Alarm Out, Encoder signal (A, @(A^), B, @(B^), Z, @(Z^))
- Driver_Protection structure: IP20
- Driver_Approval: -
- Motor_Basic Step Angle [FULL/HALF]: 1.8º/0.9º
- Motor_Max. Holding Torque: 0.357kgf.cm
- Motor_Rotor Moment Of Inertia: 2g·cm²
- Motor_Winding Resistance: 10.5Ω
- Motor_Rated Current: 0.6A/Phase
- Motor_Motor length: 53.1mm
- Motor_Shaft Type: Single shaft
- Motor_Operation Method: Bipolar constant current Drive
- Motor_Resolution: 4,000PPR(1,000PPR×4-multiply)
- Motor_Output phase: A, @(A^), B, @(B^), Z, @(Z^)
- Motor_Max. response frequency: 200kHz
- Motor_Protection structure: IP30
- Motor_Approval: -
- Motor phase: 2-Phase
- Driver_Environment_Ambient temperature: 0 to 50℃, storage: -20 to 70℃
- Driver_Environment_Ambient humidity: 35 to 85%RH, storage: 10 to 90%RH
- Driver_Weight: Approx. 400g(approx. 290g)
- Motor_Number Of Axes: 1-axis
- Motor_Environment_Ambient temperature: 0 to 50℃, storage: -20 to 70℃
- Motor_Environment_Ambient humidity: 20 to 85%RH, storage: 15 to 90%RH
- Motor_Weight: Approx. 0.219kg (approx. 0.120kg)
