Autonics AiS Series AiS-56LA

List Price:

$700.00

/each

Product Description

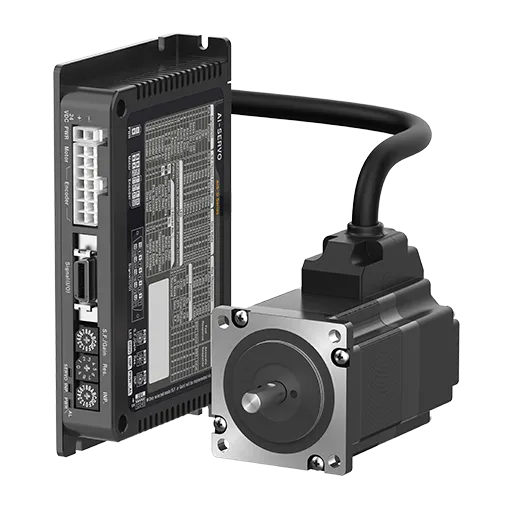

Autonics 2-phase Closed Loop Systems(inc), model AiS-56LA, from the AiS Series product line.

Driver_Operation Method: Bipolar constant current Drive
Driver_Applied Motor: Frame size 56mm 2-phase closed loop stepper motor
Driver_Resolution: 500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000 PPR (selectable by SW2)
Driver_Power supply: 24VDC @(=)
Driver_Max. Run Current: 3.5A/Phase
Driver_Max. Power consumption: 120W
Driver_Output: In-Position, Alarm Out, Encoder signal (A, @(A^), B, @(B^), Z, @(Z^))
Driver_Protection structure: IP20
Driver_Approval: @(CE)
Motor_Basic Step Angle [FULL/HALF]: 1.8º/0.9º
Motor_Max. Holding Torque: 20.39kgf.cm
Motor_Rotor Moment Of Inertia: 480g·cm²
Motor_Winding Resistance: 0.93Ω
Motor_Rated Current: 3.5A/Phase
Motor_Motor length: 111.3mm
Motor_Shaft Type: Single shaft
Motor_Operation Method: Bipolar
Motor_Resolution: 10,000PPR(2,500PPR×4-multiply)
Motor_Output phase: A, @(A^), B, @(B^), Z, @(Z^)
Motor_Max. response frequency: 300kHz
Motor_Protection structure: IP30
Motor_Approval: -
Motor phase: 2-Phase
Driver_Environment_Ambient temperature: 0 to 50℃, storage: -10 to 60℃
Driver_Environment_Ambient humidity: 35 to 85%RH, storage: 10 to 90%RH
Driver_Weight: Approx. 400g(approx. 290g)
Motor_Number Of Axes: 1-axis
Motor_Environment_Ambient temperature: 0 to 50℃, storage: -20 to 70℃
Motor_Environment_Ambient humidity: 20 to 85%RH, storage: 15 to 90%RH
Motor_Weight: Approx. 1.36kg(approx. 1.22kg)
