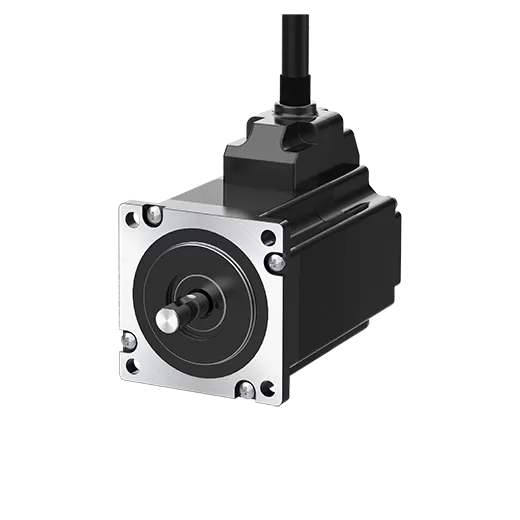

Autonics Ai-M Series AI-M-56LA

Autonics Ai-M Series AI-M-56LA

Part Number #

AUT1052739

Autonics Ai-M Series AI-M-56LA

List Price:

$341.00

/each

Product Description

Autonics 2-phase Closed Loop Systems(inc), model AI-M-56LA, from the Ai-M Series product line.

Specifications

Basic Step Angle [FULL/HALF]: 1.8º/0.9º
Max. holding torque: 20.39kgf.cm
Rotor Moment Of Inertia: 480g·cm²
Winding Resistance: 0.93Ω
Rated current: 3.5A/Phase
Motor length: 111.3mm
Shaft type: Single shaft
Operation method: Bipolar
Resolution: 10,000PPR(2,500PPR×4-multiply)
Output phase: A, @(A^), B, @(B^), Z, @(Z^)
Max. response frequency: 300
Protection structure: IP30
Motor phase: 2-Phase
Number Of Axes: 1-axis
Environment_Ambient temperature: 0 to 50℃, storage: -20 to 70℃
Environment_Ambient humidity: 20 to 85%RH, storage: 15 to 90%RH
Weight: Approx. 1.36kg(approx. 1.22kg)
