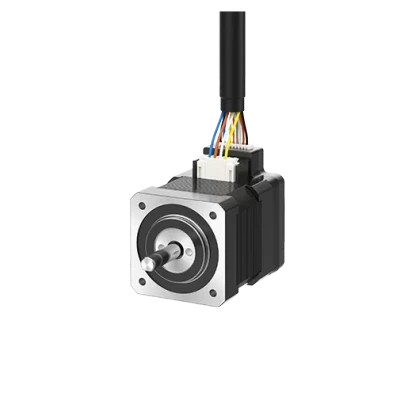

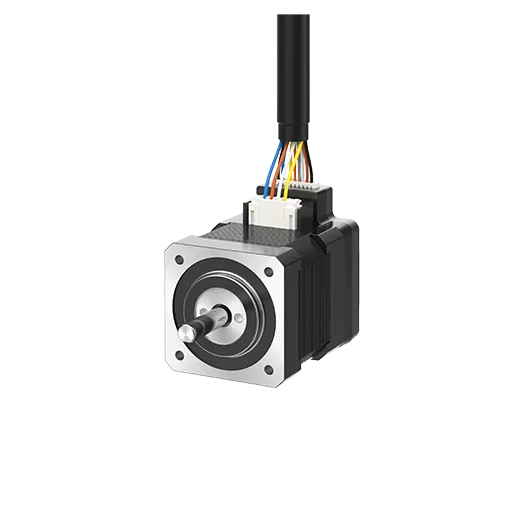

Autonics Ai-M Series Ai-M-35SB

Autonics Ai-M Series Ai-M-35SB

Part Number #

AUT1052748

Autonics Ai-M Series Ai-M-35SB

List Price:

$336.00

/each

Product Description

Autonics 2-phase Closed Loop Systems(inc), model Ai-M-35SB, from the Ai-M Series product line.

Specifications

Basic Step Angle [FULL/HALF]: 1.8º/0.9º
Max. holding torque: 0.714kgf.cm
Rotor Moment Of Inertia: 8g·cm²
Winding Resistance: 2.1Ω
Rated current: 1.2A/Phase
Motor length: 41.5mm
Shaft type: Single shaft
Operation method: Bipolar
Resolution: 16,000PPR(4,000PPR×4-multiply)
Output phase: A, @(A^), B, @(B^), Z, @(Z^)
Max. response frequency: 1,000kHz
Protection structure: IP30
Motor phase: 2-Phase
Number Of Axes: 1-axis
Environment_Ambient temperature: 0 to 50℃, storage: -20 to 70℃
Environment_Ambient humidity: 20 to 85%RH, storage: 15 to 90%RH
Weight: Approx. 0.278g (approx. 0.180kg)
