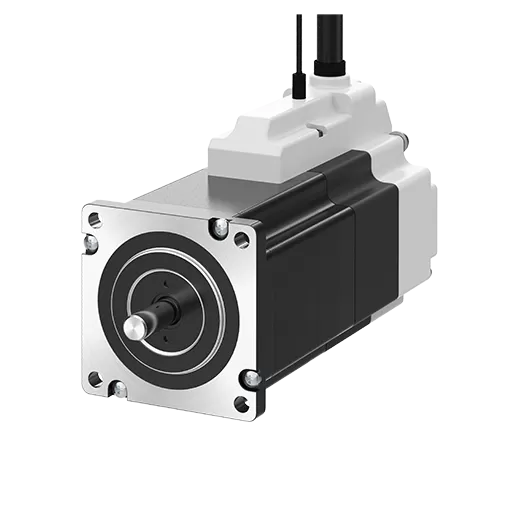

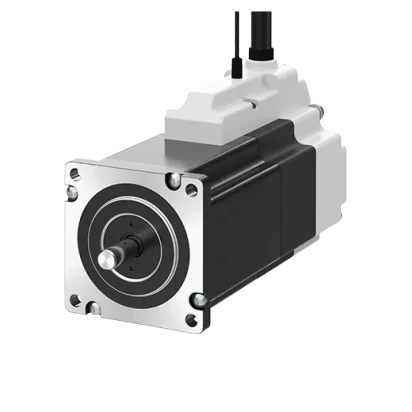

Autonics AiA-M-B Series AiA-M-60LA-B

Autonics AiA-M-B Series AiA-M-60LA-B

Part Number #

AUT1052886

Autonics AiA-M-B Series AiA-M-60LA-B

List Price:

$778.00

/each

Product Description

Autonics 2-phase Closed Loop Systems(inc), model AiA-M-60LA-B, from the AiA-M-B Series product line.

Specifications

Max. holding torque: 22.43kgf.cm
Rotor Moment Of Inertia: 490g·cm²
Rated current: 2A/Phase
Winding Resistance: 2.4Ω
Inductance: 8.5 mH/Phase
Weight: Approx. 1.90 kg (approx. 1.75 kg)
Basic Step Angle [FULL/HALF]: 1.8º/0.9º
Motor phase: 2-Phase
Operation method: Bipolar constant current Drive
Resolution: 10,000PPR(2,500PPR×4-multiply)
Output phase: A, @(A^), B, @(B^), Z, @(Z^)
Max. response frequency: 300kHz
Protection structure: IP30
Environment_Ambient temperature: 0 to 40℃, storage: -20 to 70℃
Environment_Ambient humidity: 20 to 85%RH, storage: 15 to 90%RH
