Autonics AiA-M Series AiA-M-60LA
Part Number #
AUT1052770

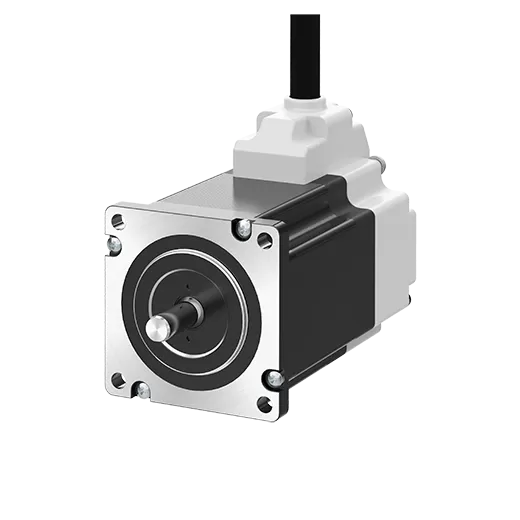

Autonics AiA-M Series AiA-M-60LA

List Price:
$467.00
/each
Product Description

Autonics 2-phase Closed Loop Systems(inc), model AiA-M-60LA, from the AiA-M Series product line.

Specifications

  • Basic Step Angle [FULL/HALF]: 1.8º/0.9º
  • Max. holding torque: 22.43kgf.cm
  • Motor_Applied Driver: Frame size 60mm AC type 2-phase closed-loop stepper motor driver
  • Rotor Moment Of Inertia: 490g·cm²
  • Winding Resistance: 2.4Ω
  • Rated current: 2A/Phase
  • Motor length: 103.8mm
  • Shaft type: Single shaft
  • Operation method: Bipolar constant current Drive
  • Resolution: 10,000PPR(2,500PPR×4-multiply)
  • Output phase: A, @(A^), B, @(B^), Z, @(Z^)
  • Max. response frequency: 300kHz
  • Protection structure: IP30
  • Motor phase: 2-Phase
  • Environment_Ambient temperature: 0 to 50℃, storage: -20 to 70℃
  • Environment_Ambient humidity: 20 to 85%RH, storage: 15 to 90%RH
  • Weight: Approx. 1.35kg(approx. 1.15kg)

Downloadable Materials

Write a Review

Out of stock

Request a Quote
  • CAD Model
  • Specifications
Brand:

Autonics 2-phase Closed Loop Systems(inc), model AiA-M-60LA, from the AiA-M Series product line.

Specifications

  • Basic Step Angle [FULL/HALF]: 1.8º/0.9º
  • Max. holding torque: 22.43kgf.cm
  • Motor_Applied Driver: Frame size 60mm AC type 2-phase closed-loop stepper motor driver
  • Rotor Moment Of Inertia: 490g·cm²
  • Winding Resistance: 2.4Ω
  • Rated current: 2A/Phase
  • Motor length: 103.8mm
  • Shaft type: Single shaft
  • Operation method: Bipolar constant current Drive
  • Resolution: 10,000PPR(2,500PPR×4-multiply)
  • Output phase: A, @(A^), B, @(B^), Z, @(Z^)
  • Max. response frequency: 300kHz
  • Protection structure: IP30
  • Motor phase: 2-Phase
  • Environment_Ambient temperature: 0 to 50℃, storage: -20 to 70℃
  • Environment_Ambient humidity: 20 to 85%RH, storage: 15 to 90%RH
  • Weight: Approx. 1.35kg(approx. 1.15kg)
