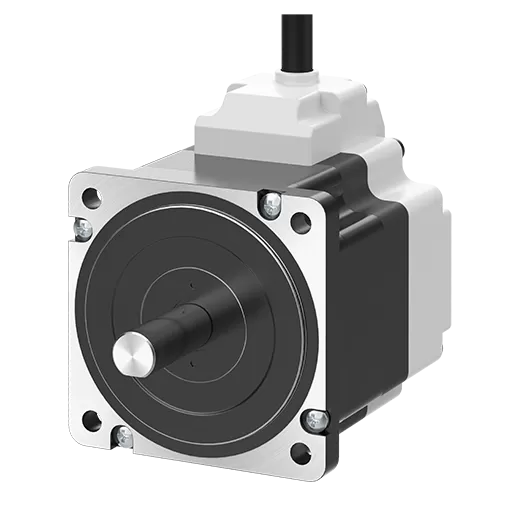

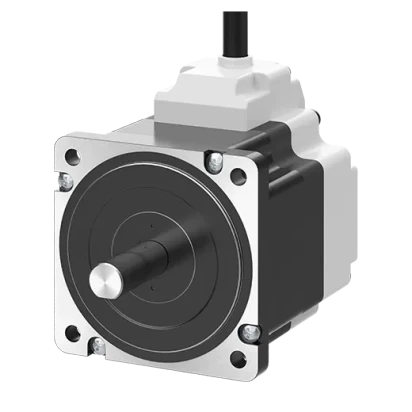

Autonics AiA-M Series AiA-M-86MA

List Price:

$591.00

/each

Product Description

Autonics 2-phase Closed Loop Systems(inc), model AiA-M-86MA, from the AiA-M Series product line.

Basic Step Angle [FULL/HALF]: 1.8º/0.9º
Max. holding torque: 28.56kgf.cm
Motor_Applied Driver: Frame size 86mm AC type 2-phase closed-loop stepper motor driver
Rotor Moment Of Inertia: 1,100g·cm²
Winding Resistance: 2.3Ω
Rated current: 2A/Phase
Motor length: 94.9mm
Shaft type: Single shaft
Operation method: Bipolar constant current Drive
Resolution: 10,000PPR(2,500PPR×4-multiply)
Output phase: A, @(A^), B, @(B^), Z, @(Z^)
Max. response frequency: 300kHz
Protection structure: IP30
Motor phase: 2-Phase
Environment_Ambient temperature: 0 to 50℃, storage: -20 to 70℃
Environment_Ambient humidity: 20 to 85%RH, storage: 15 to 90%RH
Weight: Approx. 2.00kg(approx. 1.70kg)
