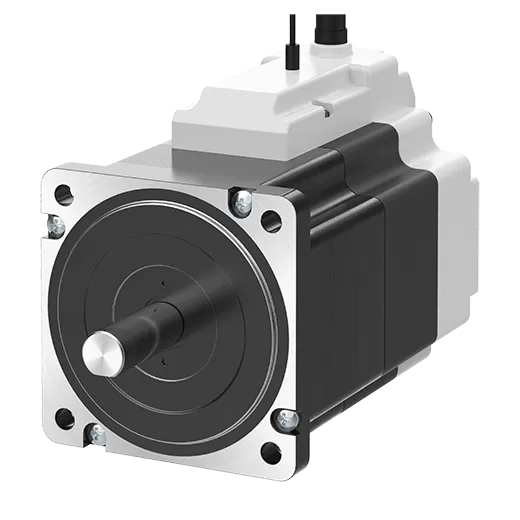

Autonics AiA-M-B Series AiA-M-86MA-B

Autonics AiA-M-B Series AiA-M-86MA-B

Part Number #

AUT1052887

Autonics AiA-M-B Series AiA-M-86MA-B

List Price:

$902.00

/each

Product Description

Autonics 2-phase Closed Loop Systems(inc), model AiA-M-86MA-B, from the AiA-M-B Series product line.

Specifications

Max. holding torque: 28.56kgf.cm
Rotor Moment Of Inertia: 1,100g·cm²
Rated current: 2A/Phase
Winding Resistance: 2.3Ω
Inductance: 11.5 mH/Phase
Weight: Approx. 2.00kg(approx. 1.70kg)
Basic Step Angle [FULL/HALF]: 1.8º/0.9º
Motor phase: 2-Phase
Operation method: Bipolar constant current Drive
Resolution: 10,000PPR(2,500PPR×4-multiply)
Output phase: A, @(A^), B, @(B^), Z, @(Z^)
Max. response frequency: 300kHz
Protection structure: IP30
Environment_Ambient temperature: 0 to 40℃, storage: -20 to 70℃
Environment_Ambient humidity: 20 to 85%RH, storage: 15 to 90%RH

Downloadable Materials
