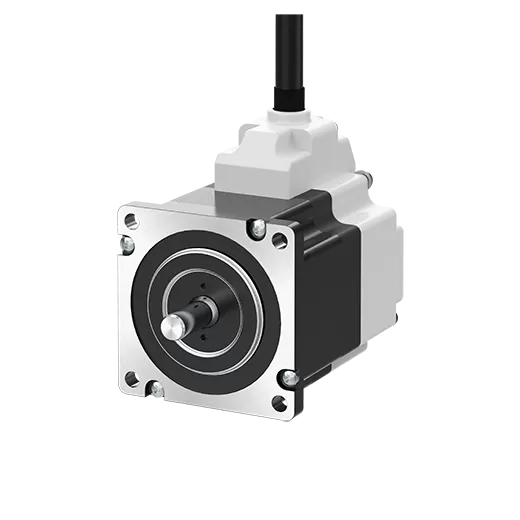

Autonics AiA-M Series AiA-M-60MA

List Price:

$455.00

/each

Product Description

Autonics 2-phase Closed Loop Systems(inc), model AiA-M-60MA, from the AiA-M Series product line.

Basic Step Angle [FULL/HALF]: 1.8º/0.9º
Max. holding torque: 11.22kgf.cm
Motor_Applied Driver: Frame size 60mm AC type 2-phase closed-loop stepper motor driver
Rotor Moment Of Inertia: 240g·cm²
Winding Resistance: 1.5Ω
Rated current: 2A/Phase
Motor length: 82.8mm
Shaft type: Single shaft
Operation method: Bipolar constant current Drive
Resolution: 10,000PPR(2,500PPR×4-multiply)
Output phase: A, @(A^), B, @(B^), Z, @(Z^)
Max. response frequency: 300kHz
Protection structure: IP30
Motor phase: 2-Phase
Environment_Ambient temperature: 0 to 50℃, storage: -20 to 70℃
Environment_Ambient humidity: 20 to 85%RH, storage: 15 to 90%RH
Weight: Approx. 0.95kg(approx. 0.75kg)
