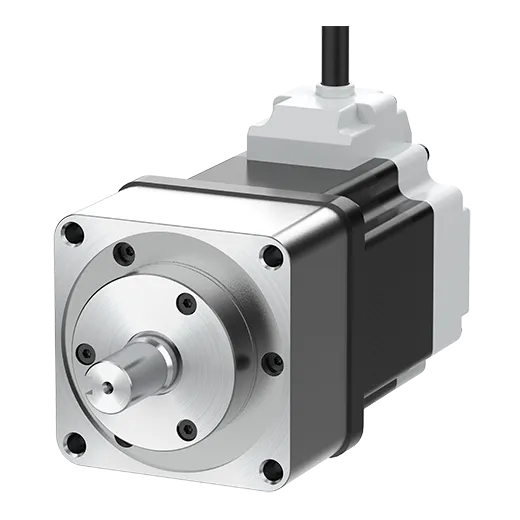

Autonics AiA-M-G/R Series AiA-M-86LA-G10

List Price:

$1,067.00

/each

Product Description

Autonics 2-phase Closed Loop Systems(inc), model AiA-M-86LA-G10, from the AiA-M-G/R Series product line.

Motor type: Built-in gear type
Reduction ratio: 0.048611111
Max. holding torque: 35N.m
Rotor Moment Of Inertia: 1800×10@(^-7) kg.m²
Rated current: 2A/Phase
Allowable torque: 20N.m
Standard step angle: 0.18 °
Backlash: 35min (0.58 °)
Winding Resistance: 1.9Ω
Inductance: 16.2 mH/Phase
Weight: ≈ 3.70 kg (≈ 3.95 kg)
Motor phase: 2-Phase
Motor_Operation Method: Bipolar
Insulation class: B type (130 ℃)
Insulation resistance: ≥ 100 MΩ (between motor coil-case 500 VDC@(=) megger)
Dielectric strength: 1000 VAC~ 50/60 Hz for 1 min (between motor coil-case)
Vibration: 1.5mm amplitude at frequency of 10 to 55Hzin each X, Y, Z direction for 2 hours
Shock: ≲ 50 G
Environment_Ambient temperature: 0 to 50℃, storage: -20 to 70℃
Environment_Ambient humidity: 20 to 85%RH, storage: 15 to 90%RH
Protection structure: IP30(IEC Standard)
Power supply: 5VDC @(=) ±5%(ripple P-P: max. 5%)
Current consumption: ≤ 50 mA (no load)
Resolution: 10,000PPR(2,500PPR×4-multiply)
Control output: Line Driver
Output phase: A, @(A^), B, @(B^), Z, @(Z^)
Max. response frequency: 300kHz
