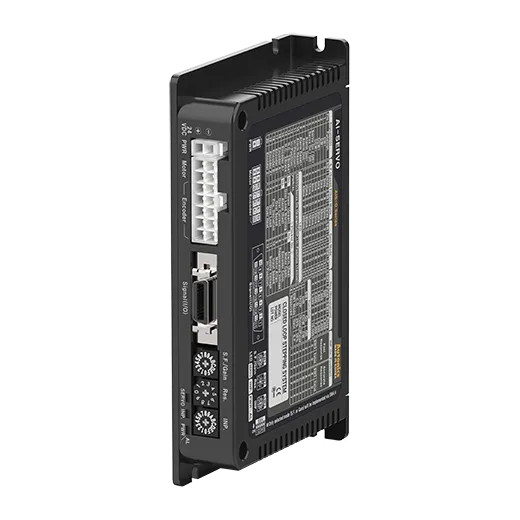

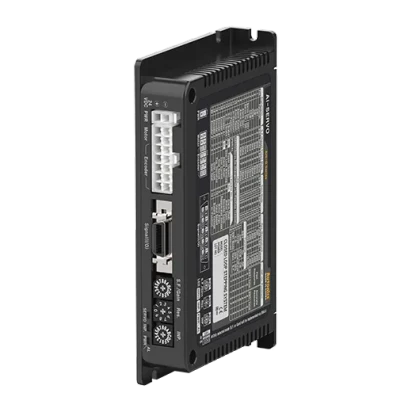

Autonics AiS-D Series AiS-D-56LA-B

List Price:

$424.00

/each

Product Description

Autonics 2-phase Closed Loop Systems(inc), model AiS-D-56LA-B, from the AiS-D Series product line.

Driver_Operation Method: Bipolar constant current Drive
Driver_Applied Motor: Frame size 56mm, shaft type, built-in brake type 2-phase closed-loop stepper motor(Ai-M-56LA-B)
Driver_Resolution: 500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000 PPR(SW2)
Driver_Power supply: 24VDC @(=)
Driver_Max. Run Current: 3.5A/Phase
Driver_Max. Power consumption: 120W
Driver_Output: In-Position, Alarm Out, Brake, Encoder signal(A, @(A^), B, @(B^), Z, @(Z^))
Driver_Protection structure: IP20
Driver_Approval: @(CE)
Driver_Environment_Ambient temperature: 0 to 50℃, storage: -20 to 70℃
Driver_Environment_Ambient humidity: 35 to 85%RH, storage: 10 to 90%RH
Driver_Weight: Approx. 400g(approx. 290g)
