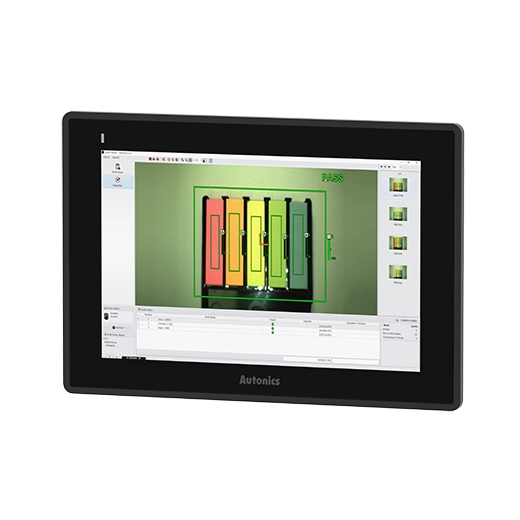

Autonics Industrial Pc, model APC-1021-EN, from the APC Series product line.
Specifications
- Language: English
- Monitor size: 10.1 inch
- Display Specifications_LCD Type: IPS TFT Color LCD
- Display Specifications_Resolution: WXGA 1280 × 800 pixel
- Contrast: 0.673611111
- Display Specifications_Display Area: 216.96 × 135.6 mm
- Display Specifications_Color: 16,777,216 colors
- LCD view angle (top/bottom/left/right): Within 85° of each
- Backlight: White LED
- Luminance: 550 cd/m²
- Touch method: Pressure sensitive type
- CPU: Integrated Intel Ⓡ J6412 / 2.0 GHz Quad core processor, TDP 10 W
- Operating System: Windows 10 IoT Enterprise Entry (64 bit)
- Hard disk: mSATA 64GB SSD
- System memory: DDR4 8GB
- Indicator: Power status indicator (green)
- Speaker: Stereo speaker 2W+2W
- Watch dog timer: Watch Dog Timer (1 to 255 sec, software setting)
- Battery life cycle: 5 years at 25℃
- Real-time controller: RTC embedded
- Unit weight (packaged weight): ≈ 1.6 kg (≈ 2 kg)
- Power supply: 24VDC @(=)
- Allowable voltage range: 90 to 110% of rated voltage
- Power consumption: Max. 30W
- Insulation resistance: 100MΩ or more (500VDC megger basis)
- Ground: 3rd grounding (max. 100Ω)
- Noise immunity: ±0.5kV the square wave noise (pulse width: 1㎲) by the noise simulator
- Dielectric strength: Between the charging part and the case: 500 VAC~ 50 / 60 Hz for 1 min
- Vibration: 0.75mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 1 hour
- Vibration_Malfunction: 0.5mm amplitude at frequency of 10 to 55Hz (for 1 minute) in each X, Y, Z direction for 10 minutes
- Shock: 300m/s² (approx. 30G) in each X, Y, Z direction for 3 times
- Shock_Malfunction: 100m/s² (approx. 10G) in each X, Y, Z direction for 3 times
- Environment_Ambient temperature: 0 to 50℃, storage: -20 to 60℃
- Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
- Protection structure: IP65 (Front panel, IEC standards)
