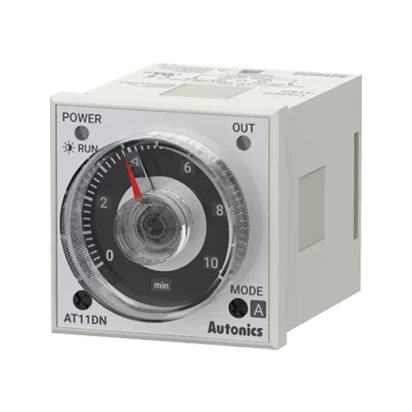

Autonics ATN Series AT11DN-2

List Price:

$49.00

/each

Product Description

Autonics Timers, model AT11DN-2, from the ATN Series product line.

Operation method: Time setting
Output Operation: SIGNAL ON DELAY, SIGNAL OFF DELAY, SIGNAL ON-OFF DELAY, FLICKER, INTERVAL
Time operation: SIGNAL ON START
Terminal: 11-pin plug
Power supply: 24VAC~, 24VDC @(=)
Setting range: 0.05 to 0.5 sec, 0.1 to 1 sec, 0.5 to 5 sec, 1 to 10 sec, 0.05 to 0.5 min, 0.1 to 1 min, 0.5 to 5 min, 1 to 10 min, 0.05 to 0.5 hour, 0.1 to 1 hour, 0.5 to 5 hour, 1 to 10 hour, 5 to 50 hour, 10 to 100 hour
Signal Input Method: No-voltage input(NPN)
Control output: Time-limit SPDT (1c): 2
Protection structure: -
Min. signal Width: INHIBIT, START, RESET: Approx. 50ms
Accessories: Bracket
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85%RH
Weight: Approx. 132.2g (approx. 85g)
