Autonics AT8PSN/AT8PMN Series AT8PSN-2

List Price:

$71.00

/each

Product Description

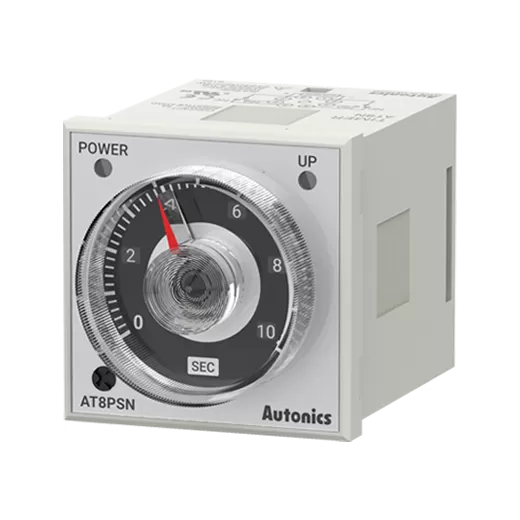

Autonics Timers, model AT8PSN-2, from the AT8PSN/AT8PMN Series product line.

Operation method: Time setting
Output Operation: POWER OFF DELAY
Time operation: POWER OFF START
Terminal: 8-pin plug
Power supply: 24VAC~ 50/60Hz, 24VDC @(=)
Setting range: 0~0.5sec, 0~1sec, 0~5sec, 0~10sec, 0~0.5min, 0~1min, 0~5min, 0~10min
Signal Input Method: -
Control output: Time-limit SPDT (1c): 2
Protection structure: -
Accessories: Bracket
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85%RH
Weight: Approx. 100g

Write a Review

Brand:

Autonics Timers, model AT8PSN-2, from the AT8PSN/AT8PMN Series product line.

Operation method: Time setting
Output Operation: POWER OFF DELAY
Time operation: POWER OFF START
Terminal: 8-pin plug
Power supply: 24VAC~ 50/60Hz, 24VDC @(=)
Setting range: 0~0.5sec, 0~1sec, 0~5sec, 0~10sec, 0~0.5min, 0~1min, 0~5min, 0~10min
Signal Input Method: -
Control output: Time-limit SPDT (1c): 2
Protection structure: -
Accessories: Bracket
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85%RH
Weight: Approx. 100g
