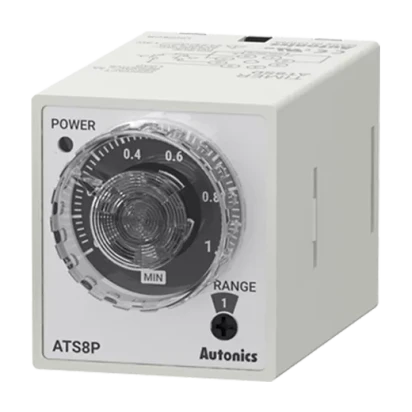

Autonics ATS8P Series ATS8P-2M

Autonics ATS8P Series ATS8P-2M

Part Number #

AUT1053342

Autonics ATS8P Series ATS8P-2M

List Price:

$50.00

/each

Product Description

Autonics Timers, model ATS8P-2M, from the ATS8P Series product line.

Specifications

Operation method: Time setting
Output Operation: POWER OFF DELAY
Time operation: POWER OFF START
Terminal: 8-pin plug
Power supply: 24VAC~ 50/60Hz, 24VDC @(=)
Setting range: 0.1 to 1 min, 1 to 10 min
Signal Input Method: -
Control output: Time-limit SPDT (1c): 2
Protection structure: -
Accessories: Bracket
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85%RH
Weight: Approx. 85g
