Autonics BEN Series BEN300-DFR

List Price:

$76.00

/each

Product Description

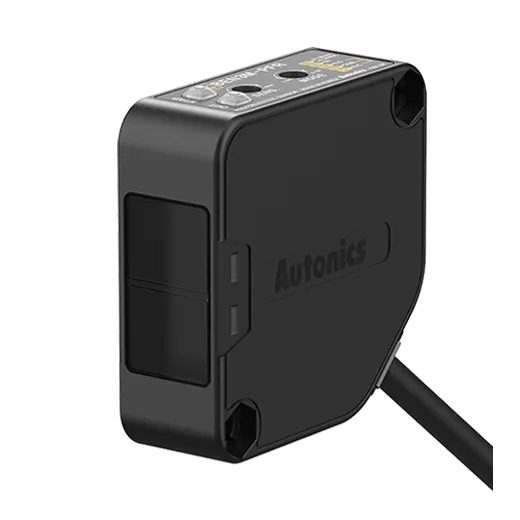

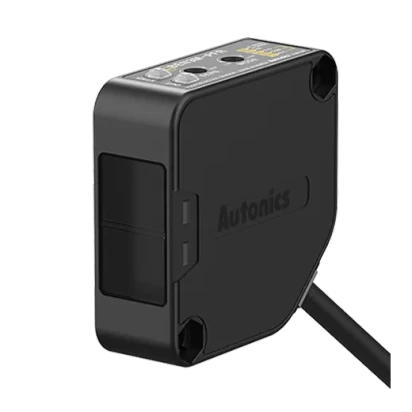

Autonics Photoelectric Sensors, model BEN300-DFR, from the BEN Series product line.

Sensing type: Diffuse reflective type
Sensing distance: 300mm
Sensing target: Opaque, Translucent material
Light source: Infrared LED(940nm)
Response time: Max. 20ms
Power supply: 24-240VAC~ ±10% 50/60Hz, 24-240VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption: Max. 4VA
Sensitivity adjustment: Sensitivity adjuster
Operation mode: Light ON/Dark ON(set by switch)
Control output: Relay
Timer function: -
Connection type: Cable type(Ø5, 2m)
Environment_Ambient illumination: Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature: -20 to 65℃, storage: -25 to 70℃
Protection structure: IP50
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance): Max. 20% at sensing distance
Material: Case, Case cover: Heat resistant Acrylonitrile butadiene styrene,Sensing part: Polycarbonate(with polarizing filter: polymethyl methacrylate),Bracket: Steel Plate cold commercial, Bolt: steel chromium molybdenum,Nut: steel chromium molybden
Accessories_Individual: -
Accessories_Common: Adjuster driver, Fixing bracket, Bolts, Nuts
Weight: Approx. 195g
