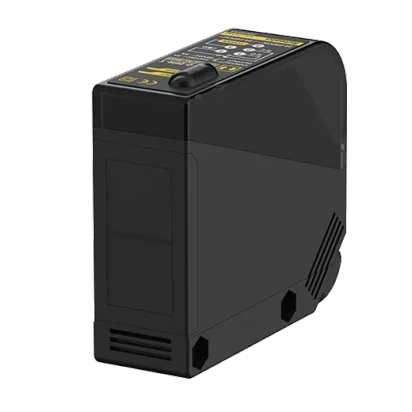

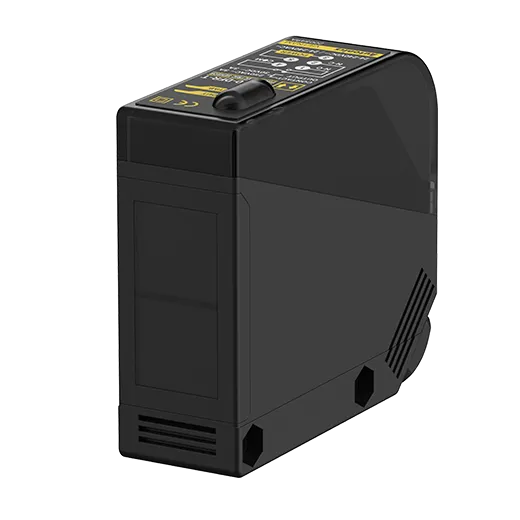

Autonics BX Series BX700-DFR

List Price:

$98.00

/each

Product Description

Autonics Photoelectric Sensors, model BX700-DFR, from the BX Series product line.

Sensing type: Diffuse reflective type
Sensing distance: 700mm
Sensing target: Opaque, Translucent material
Light source: Infrared LED(940nm)
Response time: Max. 20ms
Power supply: 24-240VAC~ ±10% 50/60Hz, 24-240VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption: Max. 3VA
Sensitivity adjustment: Sensitivity adjuster
Operation mode: Light ON/Dark ON(set by switch)
Control output: Relay
Timer function: -
Connection type: Terminal block type
Environment_Ambient illumination: Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature: -20 to 55℃, storage: -25 to 70℃
Protection structure: IP65
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance): Max. 20% at sensing distance
Material: Case, Lens cover: Polycarbonate, Sensing part: Acrylic, Bracket: Steel plate cold commercial,</br>Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum
Accessories_Individual: -
Accessories_Common: Adjuster driver, Fixing bracket, Bolts, Nuts
Weight: Approx. 115g
