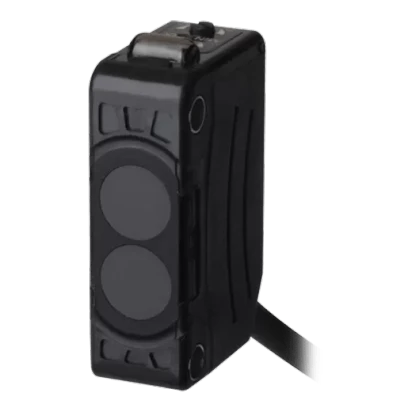

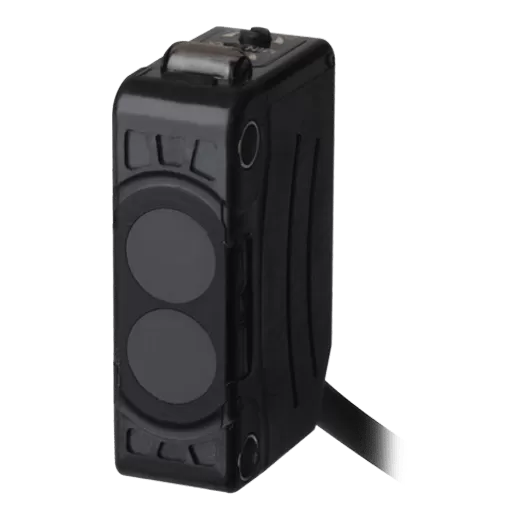

Autonics BJ Series BJ100-DDT

List Price:

$79.00

/each

Product Description

Autonics Photoelectric Sensors, model BJ100-DDT, from the BJ Series product line.

Sensing type: Diffuse reflective type
Sensing distance: 100mm
Sensing target: Opaque, Translucent material
Light source: Infrared LED(850nm)
Response time: Max. 1ms
Power supply: 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption: Max. 30mA
Sensitivity adjustment: Sensitivity adjuster
Operation mode: Light ON/Dark ON(set by switch)
Control output: NPN open collector
Timer function: -
Connection type: Cable type(Ø3.5, 2m)
Environment_Ambient illumination: Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature: -25 to 55℃, storage: -40 to 70℃
Protection structure: IP65
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance): Max. 20% of sensing distance
Min. diameter of transmitting spot: -
Material: Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,</br>Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,</br>Sleeve: Brass, Ni-plate
Accessories_Common: Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver
Accessories_Individual: -
Weight: Approx. 70g (approx. 45g)
