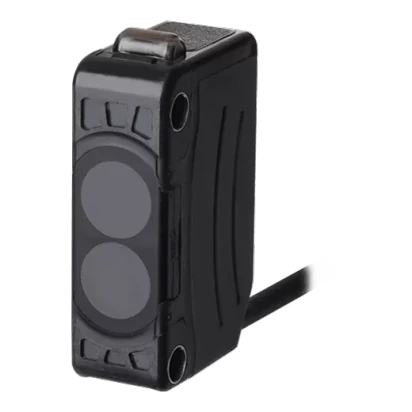

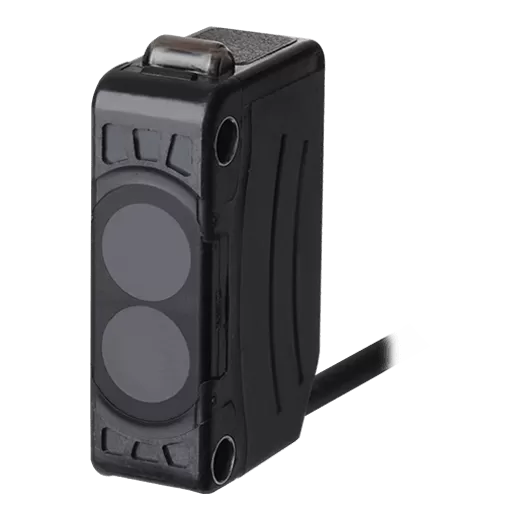

Autonics BJ Series BJG30-DDT

List Price:

$98.00

/each

Product Description

Autonics Photoelectric Sensors, model BJG30-DDT, from the BJ Series product line.

Sensing type: Diffuse reflective type
Sensing distance: 30mm(Non-glossy white paper 100×100mm), 15mm(Transparent glass 50×50mm, t=3.0mm)
Sensing target: Opaque, Translucent material(30mm), Transparent glass(15mm)
Light source: Infrared LED(850nm)
Response time: Max. 1ms
Power supply: 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption: Max. 30mA
Sensitivity adjustment: -
Operation mode: Light ON
Control output: NPN open collector
Timer function: -
Connection type: Cable type(Ø3.5, 2m)
Environment_Ambient illumination: Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature: -25 to 55℃, storage: -40 to 70℃
Protection structure: IP65
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance): Max. 20% of sensing distance
Min. diameter of transmitting spot: -
Material: Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,</br>Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,</br>Sleeve: Brass, Ni-plate
Accessories: Fixing bracket, M3 bolt: 2, M3 nut: 2
Weight: Approx. 45g
