Autonics BTS Series BTS1M-TDTD
Part Number #
AUT1049410

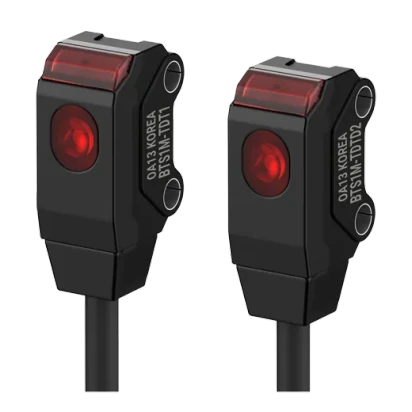

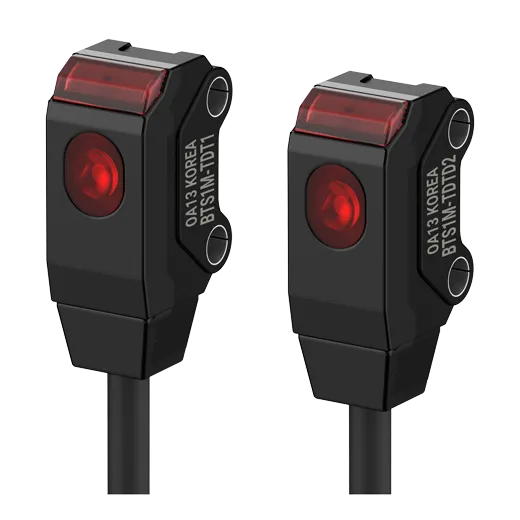

Autonics BTS Series BTS1M-TDTD

List Price:
$98.00
/each
Product Description

Autonics Photoelectric Sensors, model BTS1M-TDTD, from the BTS Series product line.

Specifications

  • Sensing type: Through-beam type
  • Sensing distance: 1m
  • Sensing target: Opaque material of min. Ø2mm
  • Light source: Red LED(650nm)
  • Response time: Max. 1ms
  • Power supply: 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
  • Current consumption: Emitter/Receiver: Max. 20mA
  • Sensitivity adjustment: -
  • Operation mode: Dark ON
  • Control output: NPN open collector
  • Timer function: -
  • Connection type: Cable type(Ø2.5, 2m)
  • Environment_Ambient illumination: Sunlight: Max. 10,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
  • Environment_Ambient temperature: -20 to 55℃, storage: -30 to 70℃
  • Protection structure: IP67
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
  • Hysteresis(distance): -
  • Material: Case: Polybutylene terephthalate, Sensing part: Polymethyl methacrylate, Bracket: Stainless steel 304,</br>Bolt: Carbon steel wire for cold heading(SWCH10A)
  • Weight: Approx. 65g(approx. 40g)
