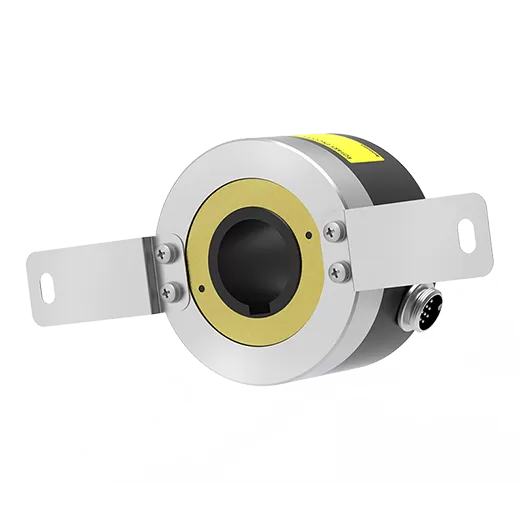

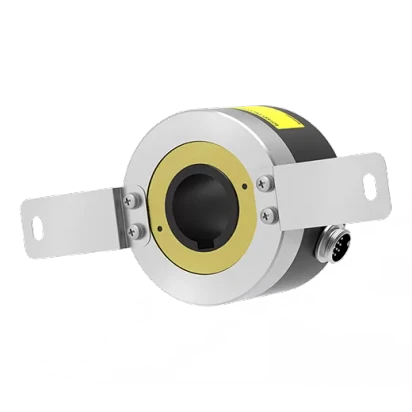

Autonics E100H Series E100H35-10000-3-N-24

Autonics E100H Series E100H35-10000-3-N-24

Part Number #

AUT1050890

Autonics E100H Series E100H35-10000-3-N-24

List Price:

$610.00

/each

Product Description

Autonics Rotary Encoders, model E100H35-10000-3-N-24, from the E100H Series product line.

Specifications

Shaft inner diameter: Ø35mm
Max. response frequency: 300kHz
Max. allowable revolution: 3600rpm
Starting torque: Max. 300gf.cm(max. 0.0294N.m)
Resolution: 10000P/R
Output phase: A, B, Z
Control output: NPN open collector
Power supply: 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type: Radial connector type
Protection structure: IP50
Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
Accessories: Bracket: 2, Connector cable
Weight: Approx. 1400g(approx. 1130g)
