Autonics E100H Series E100H35-10000-6-L-5
Part Number #
AUT1050894

Autonics E100H Series E100H35-10000-6-L-5

List Price:
$643.00
/each
Product Description

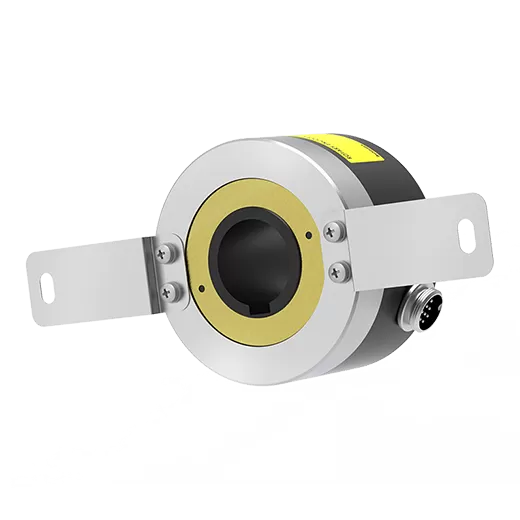

Autonics Rotary Encoders, model E100H35-10000-6-L-5, from the E100H Series product line.

Specifications

  • Shaft inner diameter: Ø35mm
  • Max. response frequency: 300kHz
  • Max. allowable revolution: 3600rpm
  • Starting torque: Max. 300gf.cm(max. 0.0294N.m)
  • Resolution: 10000P/R
  • Output phase: A, @(A^), B, @(B^), Z, @(Z^)
  • Control output: Line Driver
  • Power supply: 5VDC @(=) ±5%(ripple P-P: max. 5%)
  • Connection type: Radial connector type
  • Protection structure: IP50
  • Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
  • Accessories: Bracket: 2, Connector cable
  • Weight: Approx. 1400g(approx. 1130g)
