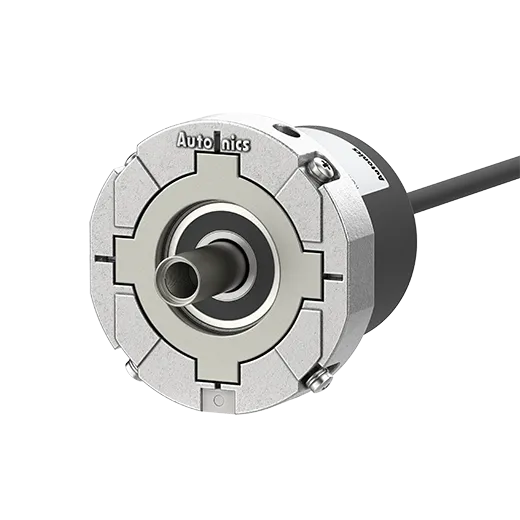

Autonics E58S (Sine Wave) Series E58S9.25-2048-10-A-5-R

Autonics E58S (Sine Wave) Series E58S9.25-2048-10-A-5-R

Part Number #

AUT1051056

Autonics E58S (Sine Wave) Series E58S9.25-2048-10-A-5-R

List Price:

$663.00

/each

Product Description

Autonics Rotary Encoders, model E58S9.25-2048-10-A-5-R, from the E58S (Sine Wave) Series product line.

Specifications

Shaft outer diameter: Ø9.25mm
Max. response frequency: 200kHz
Max. allowable revolution: 6000rpm
Starting torque: Max. 100gf.cm(0.0098N.m)
Resolution: 2048P/R
Output phase: A, @(A^), B, @(B^), Z, @(Z^), C, @(C^), D, @(D^)
Control output: Analog sine wave OP Amp output
Power supply: 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type: Axial cable type
Protection structure: IP50
Environment_Ambient temperature: -20 to 100℃, storage: -25 to 100℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
Accessories: M5×0.8 (50L), M5×0.8 (47L) wrench bolt
Weight: Approx. 1.02kg(approx. 930g)
