Autonics E58SS Series E58SS6-20-3-T-24

Autonics E58SS Series E58SS6-20-3-T-24

Part Number #

AUT1050816

Autonics E58SS Series E58SS6-20-3-T-24

List Price:

$237.00

/each

Product Description

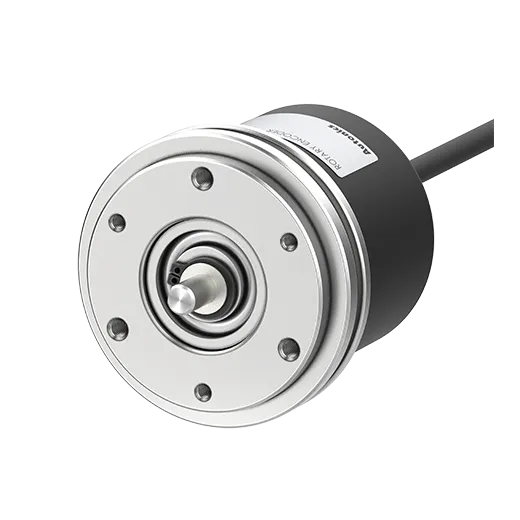

Autonics Rotary Encoders, model E58SS6-20-3-T-24, from the E58SS Series product line.

Specifications

Shaft outer diameter: Ø6mm
Max. response frequency: 300kHz
Max. allowable revolution: 5000rpm
Starting torque: Max. 40gf.cm(max. 0.00392N.m)
Resolution: 20P/R
Output phase: A, B, Z
Control output: Totem pole
Power supply: 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type: Axial cable type
Protection structure: IP50
Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
Accessories: Ø6mm coupling, Bracket
Weight: Approx. 395g(approx. 285g)
