Autonics E68S Series E68S15-1024-6-L-5
Part Number #
AUT1050858

Autonics E68S Series E68S15-1024-6-L-5

List Price:
$436.00
/each
Product Description

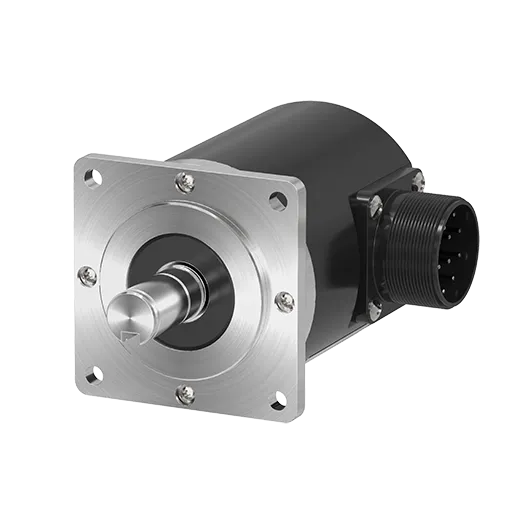

Autonics Rotary Encoders, model E68S15-1024-6-L-5, from the E68S Series product line.

Specifications

  • Shaft outer diameter: Ø15mm
  • Max. response frequency: 180kHz
  • Max. allowable revolution: 6500rpm
  • Starting torque: Max. 1.5kgf.cm(max. 0.147N.m)
  • Resolution: 1024P/R
  • Output phase: A, @(A^), B, @(B^), Z, @(Z^)
  • Control output: Line Driver
  • Power supply: 5VDC @(=) ±5%(ripple P-P: max. 5%)
  • Connection type: Radial connector type
  • Protection structure: IP65
  • Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
  • Weight: Approx. 550g
