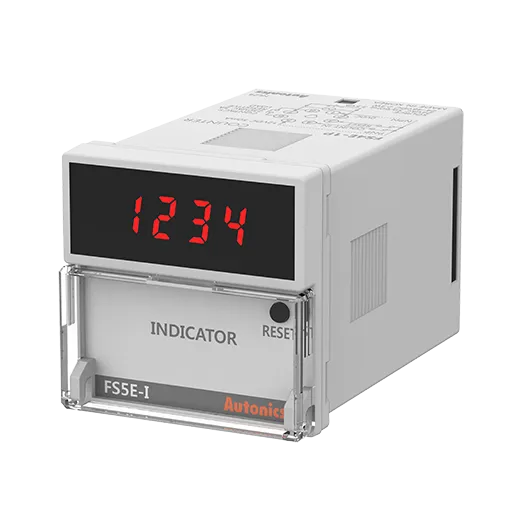

Autonics FSE Series FS5E-I4

List Price:

$113.00

/each

Product Description

Autonics Timers, model FS5E-I4, from the FSE Series product line.

Display method: 4-digit 7-segment LED
Operation method: Count up, Count down
Output Operation: POWER ON DELAY, FLICKER
Time operation: -
Terminal: 8-pin plug
Power supply: 100-240VAC~ 50/60Hz
External Power Supply: Max. 12VDC @(=) ±10% 50mA
Memory Protection: Approx. 10 years
Setting range: 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 99 hour 59 min, 0.1 hour to 999.9 hour, 1 hour to 9999 hour
Signal Input Method: Voltage input(PNP), No-voltage input(NPN)
Control output_Type: Indicator
Control output_Relay: -
Control output_NPN open collector: -
Protection structure: IP20(front panel)
Min. signal Width: RESET, INHIBIT: approx. 20ms
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85%RH
Weight: Approx. 120g(approx. 80g)

Write a Review

Brand:

Autonics Timers, model FS5E-I4, from the FSE Series product line.

Display method: 4-digit 7-segment LED
Operation method: Count up, Count down
Output Operation: POWER ON DELAY, FLICKER
Time operation: -
Terminal: 8-pin plug
Power supply: 100-240VAC~ 50/60Hz
External Power Supply: Max. 12VDC @(=) ±10% 50mA
Memory Protection: Approx. 10 years
Setting range: 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 99 hour 59 min, 0.1 hour to 999.9 hour, 1 hour to 9999 hour
Signal Input Method: Voltage input(PNP), No-voltage input(NPN)
Control output_Type: Indicator
Control output_Relay: -
Control output_NPN open collector: -
Protection structure: IP20(front panel)
Min. signal Width: RESET, INHIBIT: approx. 20ms
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85%RH
Weight: Approx. 120g(approx. 80g)
